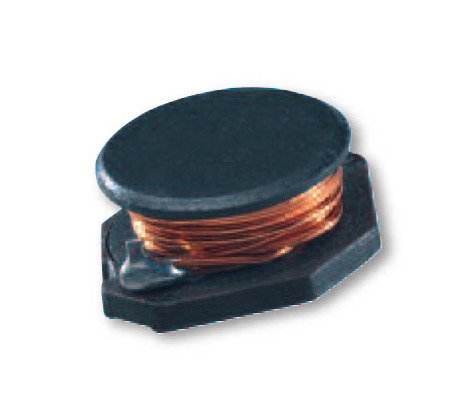

AX97 Power Shielded Inductors
AX97 Power Shielded Inductors
SKU:IND-42046c
Enhance your electronics with slim and low-resistance AX97 Inductors for top-notch performance.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
AX97 Power Shielded Inductors
$25.99
Quantity: 1
Claim Your Seller Account
AX97 Power Shielded Inductors
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your electronic devices with the AX97 Power Shielded Inductors, featuring a slim design and low resistance for optimal performance. With an inductance of 4.7 µH and a max DC resistance of 0.020 Ohm, these inductors ensure excellent DC current characteristics. Ideal for laptop computers, DC/DC converters, and portable communication equipment, the AX97 series is a reliable choice for general-purpose use.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
6.00 A

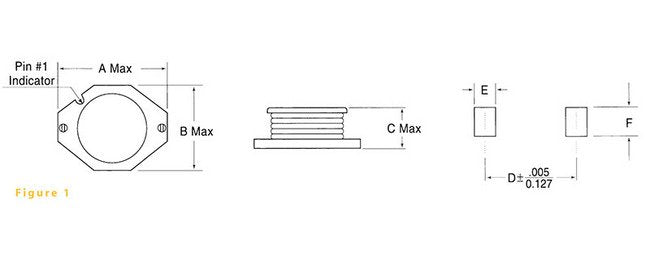

Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
4.7 µH
Specifications Max Dc Resistance At 25
0.020 Ohm
