AX97 Power Shielded Inductors

AX97 Power Shielded Inductors

SKU:IND-c22349

Slim, high-performance SMD inductors with low resistance & excellent DC current characteristics for laptops, DC/DC converters, & portable devices.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

AX97 Power Shielded Inductors

AX97 Power Shielded Inductors

$24.99

Quantity: 1

Claim Your Seller Account

AX97 Power Shielded Inductors

AX97 Power Shielded Inductors

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

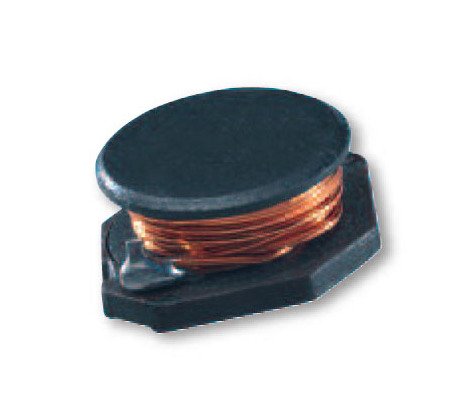

The AX97 Series SMD Power Shielded Inductors are expertly engineered for high performance in a slim design. With a low resistance of 0.030 Ohm and an inductance of 8.2 µH, these inductors offer excellent DC current characteristics, making them ideal for various applications such as laptop and notebook computers, DC/DC converters, and portable communication equipment. Their compact dimensions ensure easy integration into your projects, providing reliable power management.

Product Specifications

Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
5.00 A

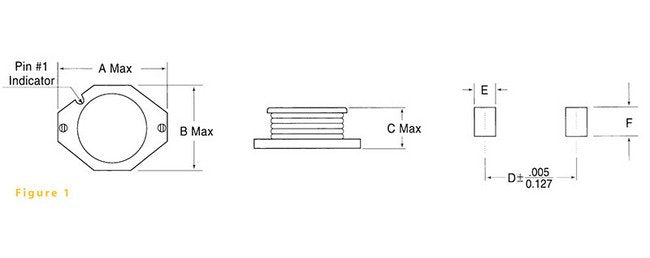

Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
8.2 µH
Specifications Max Dc Resistance At 25
0.030 Ohm
