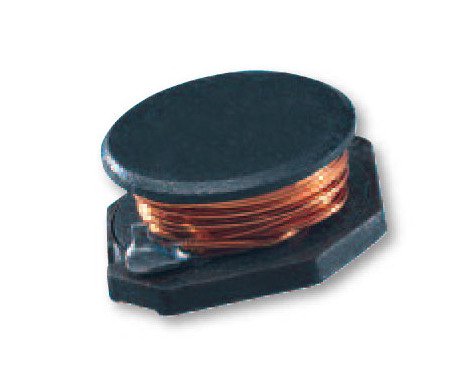

AX97 Power Shielded Inductors - High Inductance
AX97 Power Shielded Inductors - High Inductance
SKU:IND-500ccd
Enhance electronic performance with AX97 Power Shielded Inductors - optimal inductance and low resistance. Ideal for laptops, converters, and communication devices.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
AX97 Power Shielded Inductors - High Inductance
$25.99
Quantity: 1
Claim Your Seller Account
AX97 Power Shielded Inductors - High Inductance
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AX97 Series SMD Power Shielded Inductors are expertly designed with a slim profile and low resistance for optimal performance in various electronic applications. With an inductance of 680.0µH and a maximum DC resistance of 3.500 Ohms, these inductors exhibit excellent DC current characteristics, making them ideal for laptop and notebook computers, DC/DC converters, portable communication equipment, and general purpose use. The compact dimensions and reliable construction ensure seamless integration and long-term durability, meeting the stringent requirements of institutional and government procurement standards.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
0.10 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.137 in | 3.50 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
680.0 µH
Specifications Max Dc Resistance At 25
3.500 Ohm
