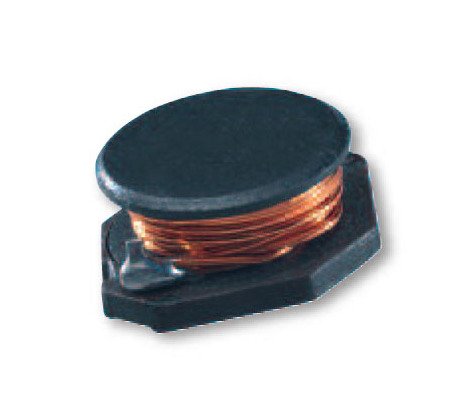

AX97 Series Power Shielded Inductors - 22.0 µH
AX97 Series Power Shielded Inductors - 22.0 µH
SKU:IND-735040
High-performance AX97 Series inductors with low resistance and excellent DC current characteristics. Ideal for laptops, DC/DC converters, and portable devices.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
AX97 Series Power Shielded Inductors - 22.0 µH
$12.99
Quantity: 1
Claim Your Seller Account
AX97 Series Power Shielded Inductors - 22.0 µH
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

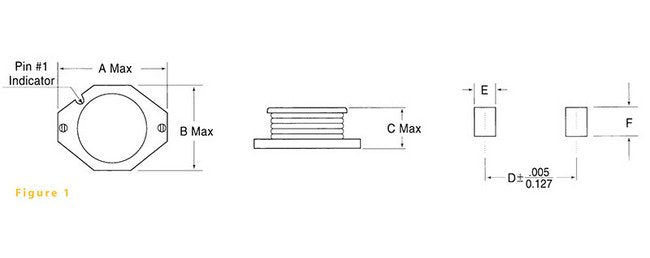

The AX97 Series SMD Power Shielded Inductors are designed for high efficiency and reliability in a slim form factor. With a low resistance of 0.070 Ohm and a current rating of 3.10 A, these inductors offer excellent DC current characteristics. Perfect for applications in Laptop and Notebook Computers, PDAs, DC/DC Converters, and Portable Communication Equipment. The dimensions of 0.530 in (A), 0.370 in (B), 0.232 in (C), 0.404 in (D), 0.120 in (E), and 0.135 in (F) make them versatile for various uses.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
3.10 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
22.0 µH
Specifications Max Dc Resistance At 25
0.070 Ohm
