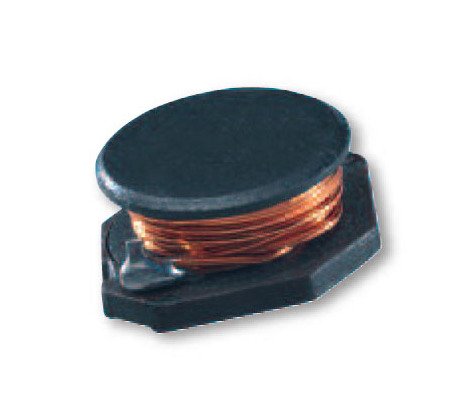

AX97 Series Slim SMD Power Shielded Inductors

AX97 Series Slim SMD Power Shielded Inductors

SKU:IND-ee2d18

High-performance slim SMD inductors with low resistance and excellent DC current characteristics.

Regular price $12.99
Regular price Sale price $12.99
Sale

Initiate Order

AX97 Series Slim SMD Power Shielded Inductors

AX97 Series Slim SMD Power Shielded Inductors

$12.99

Quantity: 1

Claim Your Seller Account

AX97 Series Slim SMD Power Shielded Inductors

AX97 Series Slim SMD Power Shielded Inductors

$12.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The AX97 Series Slim SMD Power Shielded Inductors are engineered for optimal performance, featuring low resistance and excellent DC current characteristics. With an inductance of 1.0 µH ±20% and a max DC resistance of 0.010 Ohm at 25°C, these inductors offer a reliable solution for various applications. Designed for high current ratings of up to 8.50 A, they are ideal for Laptop and Notebook Computers, PDAs, DC/DC Converters, and Portable Communication Equipment. The compact dimensions ensure easy integration into your projects, providing efficient power management and signal integrity.

Product Specifications

Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use

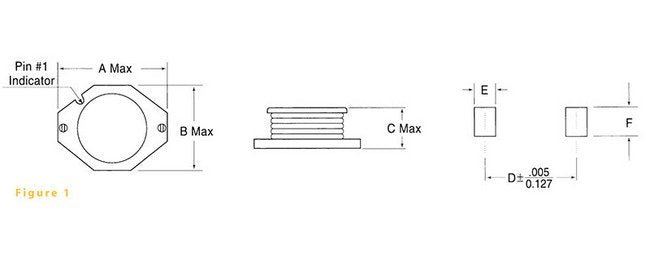

Specifications Current Rating
8.50 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
1.0 µH
Specifications Max Dc Resistance At 25
0.010 Ohm
