AX97 Series SMD Power Shielded Inductors - 15.0µH, 3.70A, Low Resistance
AX97 Series SMD Power Shielded Inductors - 15.0µH, 3.70A, Low Resistance
SKU:IND-ab092b
Slim design, low resistance, high current capacity - ideal for laptops, converters, and communication devices.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
AX97 Series SMD Power Shielded Inductors - 15.0µH, 3.70A, Low Resistance
$29.99
Quantity: 1
Claim Your Seller Account
AX97 Series SMD Power Shielded Inductors - 15.0µH, 3.70A, Low Resistance
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

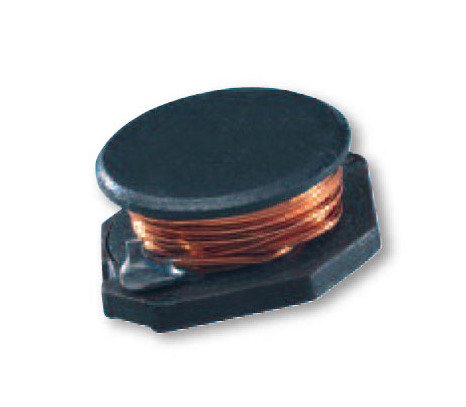

The AX97 Series SMD Power Shielded Inductors are engineered for superior performance in a slim design. With a low DC resistance of 0.050 Ohm, these inductors offer excellent current handling of up to 3.70A, making them ideal for high-power applications. Their precise inductance of 15.0µH ensures reliable power conversion in devices like laptops, DC/DC converters, and portable communication equipment. Trust the AX97 Series for space-saving, high-efficiency inductors compliant with industry standards.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
3.70 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
15.0 µH
Specifications Max Dc Resistance At 25
0.050 Ohm
