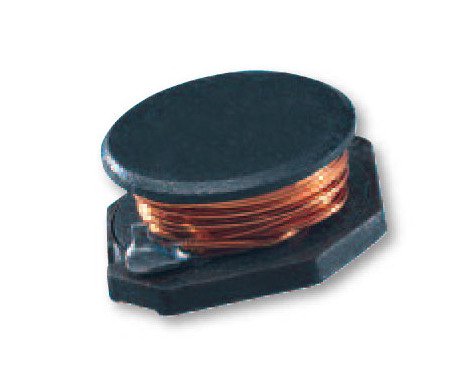

AX97 Series SMD Power Shielded Inductors - 68.0 µH
AX97 Series SMD Power Shielded Inductors - 68.0 µH
SKU:IND-273748
Slim type inductors with low resistance and high DC current characteristics, ideal for laptops and portable devices.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
AX97 Series SMD Power Shielded Inductors - 68.0 µH
$12.99
Quantity: 1
Claim Your Seller Account
AX97 Series SMD Power Shielded Inductors - 68.0 µH
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AX97 Series SMD Power Shielded Inductors are designed for optimal performance in a slim form factor, offering low resistance and excellent DC current characteristics. With an inductance of 68.0 µH and a maximum DC resistance of 0.420 Ohm, these inductors provide reliable power shielding for various applications, including laptop computers, DC/DC converters, and portable communication equipment. Their compact dimensions and high current rating of 0.7 A make them ideal for space-constrained and high-power electronic devices.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
0.7 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.137 in | 3.50 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
68.0 µH
Specifications Max Dc Resistance At 25
0.420 Ohm
