AX97 Series SMD Power Shielded Inductors - High-Performance Inductors
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors
SKU:IND-5aeae6
Slim design, low resistance, excellent DC current characteristics - ideal for laptops, converters, and communication devices.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors
$29.99
Quantity: 1
Claim Your Seller Account
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

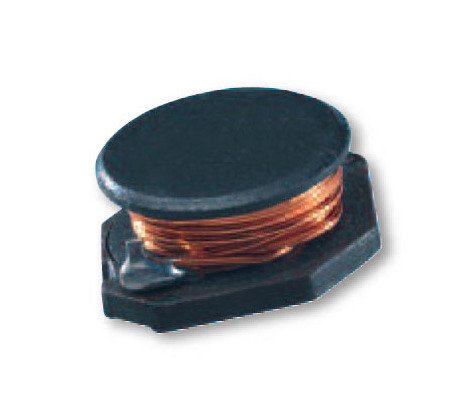

The AX97 Series SMD Power Shielded Inductors are designed for optimal performance in a variety of applications. With a slim design and low resistance, these inductors offer excellent DC current characteristics. They feature an inductance of 100.0 µH, a max DC resistance of 0.300 Ohm, and a current rating of 1.50 A, making them ideal for use in laptop and notebook computers, PDAs, DC/DC converters, and portable communication equipment. These inductors are a reliable choice for general-purpose use.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
1.50 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
100.0 µH
Specifications Max Dc Resistance At 25
0.300 Ohm
