AX97 Series SMD Power Shielded Inductors - High-Performance Inductors for Electronics
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors for Electronics
SKU:IND-c793dc
Slim design, low resistance, and excellent DC current characteristics make these inductors ideal for electronics applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors for Electronics
$29.99
Quantity: 1
Claim Your Seller Account
AX97 Series SMD Power Shielded Inductors - High-Performance Inductors for Electronics
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

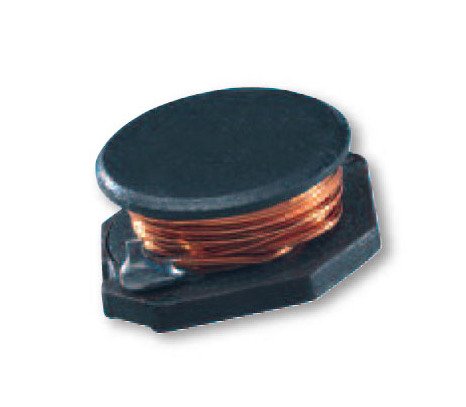

The AX97 Series SMD Power Shielded Inductors are designed for superior performance in various applications. With a slim design and low resistance, these inductors offer excellent DC current characteristics, making them ideal for demanding electronic devices. Featuring an inductance of 2.2 µH ±20% and a max DC resistance of 0.020 Ohm, these inductors can handle a current rating of 7.40 A. The compact dimensions ensure easy integration into laptop and notebook computers, PDAs, DC/DC converters, and portable communication equipment. Trust the AX97 Series for reliable inductor solutions that meet the highest industry standards.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
7.40 A

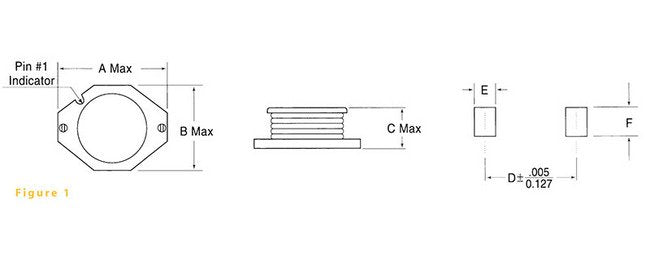

Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
2.2 µH
Specifications Max Dc Resistance At 25
0.020 Ohm
