AX97 Series SMD Power Shielded Inductors - High Performance Low-Profile Inductors
AX97 Series SMD Power Shielded Inductors - High Performance Low-Profile Inductors
SKU:IND-5a021b
Experience peak performance with AX97 Series SMD Power Shielded Inductors – slim, low-resistance, and reliable for varied applications.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
AX97 Series SMD Power Shielded Inductors - High Performance Low-Profile Inductors
$12.99
Quantity: 1
Claim Your Seller Account
AX97 Series SMD Power Shielded Inductors - High Performance Low-Profile Inductors
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

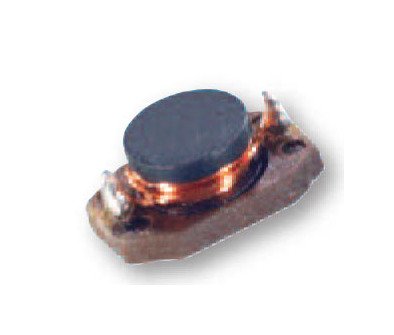

The AX97 Series SMD Power Shielded Inductors are meticulously designed to provide unparalleled performance in a slim profile. With low resistance and excellent DC current characteristics, these inductors offer reliable power regulation and signal filtering. Ideal for applications in Laptop and Notebook Computers, DC/DC Converters, Portable Communication Equipment, and General Purpose Use, these inductors ensure optimal efficiency and stability in diverse electronic systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
1.3 A

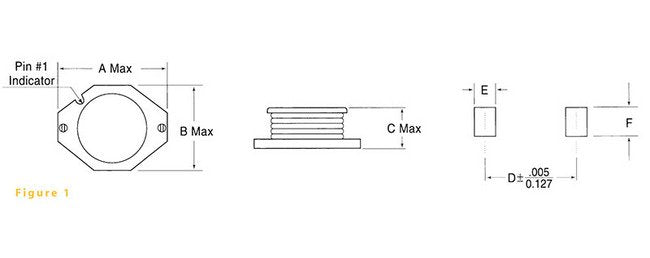

Specifications Dimension A
0.295 in | 7.30 mm
Specifications Dimension B
0.188 in | 4.78 mm
Specifications Dimension C
0.127 in | 3.23 mm
Specifications Dimension D
0.218 in | 5.54 mm
Specifications Dimension E
0.059 in | 1.50 mm
Specifications Dimension F
0.100 in | 2.54 mm
Specifications Inductance H 20
6.8 µH
Specifications Max Dc Resistance At 25
0.170 Ohm
