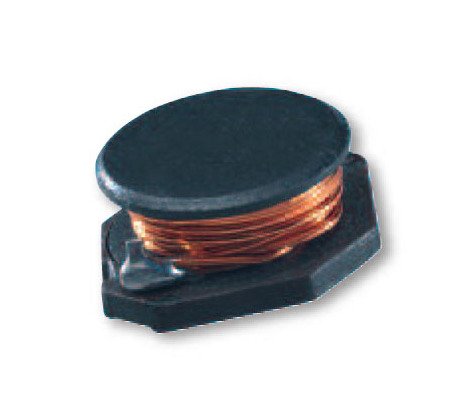

AX97 SMD Power Shielded Inductors
AX97 SMD Power Shielded Inductors
SKU:IND-592fa5
High-performance slim SMD inductors with low resistance and excellent DC current characteristics for laptops, DC converters, and portable communication devices.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
AX97 SMD Power Shielded Inductors
$12.99
Quantity: 1
Claim Your Seller Account
AX97 SMD Power Shielded Inductors
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AX97 Series SMD Power Shielded Inductors are designed for optimal performance in slim and space-constrained applications. With low resistance and excellent DC current characteristics, these inductors ensure efficient power transfer and reliable operation. Featuring an inductance of 1.5 µH with a max DC resistance of 0.010 Ohm, a current rating of 7.90 A, and compact dimensions, they are ideal for use in laptop and notebook computers, DC/DC converters, and portable communication equipment. Trust the AX97 Series for high-quality inductors that meet the demands of modern electronic devices.
Product Specifications
Applications 0
Laptop and Notebook Computers and PDAsDC/DC ConvertersPortable Communication EquipmentInductor for General Purpose Use
Specifications Current Rating
7.90 A
Specifications Dimension A
0.530 in | 13.46 mm
Specifications Dimension B
0.370 in | 9.40 mm
Specifications Dimension C
0.232 in | 5.90 mm
Specifications Dimension D
0.404 in | 10.26 mm
Specifications Dimension E
0.120 in | 3.05 mm
Specifications Dimension F
0.135 in | 3.43 mm
Specifications Inductance H 20
1.5 µH
Specifications Max Dc Resistance At 25
0.010 Ohm
