The Axiom DL Series Continuous Motion Case/Tray Packer by Axiom® | Douglas offers mid-speed continuous packing with direct case loading, enhancing production efficiency with speeds up to 55 cases/trays per minute. This innovative packer minimizes unnecessary components, enabling a compact design and straight-through product flow. Featuring servo technology, quick changeovers, and precise product control, it ensures greater speed, gentle product handling, and increased flexibility. With advanced infeed solutions and patented design for efficient pack-pattern loading, this packer redefines high efficiency lines, providing stability, accuracy, and performance for a wide range of product types.
Product Specifications
Additional Information Additional Information
Combining maximum speed and flexibilityServo driven Axiom® continuous motion case/tray packers utilize smooth, continuous motion in all sections of the machines. To maximize throughput and improve product stability, cases never stop moving from loading to discharge. Servo functions reliably and accurately pack cartons, bottles, cans, jars, and jugs using innovative infeed technology and high-speed case loading methods with precise product control.
Air Pressure Air Pressure
90 psi | 6.2 bar
Air Pressure Air Pressure Drop
One
Case Size Range Maximum Case Size
12 x 21 x 13 in
Case Size Range Minimum Case Size
6 x 8 x 3.5 in
Case Size Range Note For Case Size Range
L = Travel DirectionLength x Width x Vertical
Features Features
Efficient Pack-Pattern LoadingAll Axiom® loading techniques are designed to provide superior performance and reliability. Axiom® continuous motion servo technology delivers smooth, harmonious performance during case loading, while maintaining accurate product control for a wide variety of pack-patterns. Patented design and precise servo control enable:Quick and repeatable changeoversGreater speedGentler product handlingIncreased flexibilityFlexible Conveying and Product HandlingA variety of advanced infeed solutions optimize performance for specific product types while maintaining gentle product handling to ensure the highest package integrity.High-Speed Lane Divider - Easily handles round, rectangular, oval, and irregularly shaped products. The high-speed lane divider will ensure balanced lanes and gentle continuous motion product handling.Smartrak® II - Mass flow infeed design eliminates soft bottle bridging and removes gaps to ensure pack-pattern accuracy and continuous product flow. Distinguishing features include modulated speed control programming for surge pressure relief at the choke point, single solid adjustment cross-members, tool-free clamps and pinned lane guide adjustment positions for stable operation and quick, accurate changeovers. By eliminating many mechanical changeover adjustments and replacing them with a one-clamp design, changeovers are seamless and fast.Recirculating Conveyor - A complete recirculating loop system controls product population and reduces line pressure as products are distributed into lanes.Pack-Pattern Collating RedefinedDouglas redefines the role of product pattern collating in high efficiency lines. Our patented technologies dramatically improve line throughput and production volume while providing remarkably stable product handling.Slipstream⢠- Patented pinless metering uses slip sheet methodology and servo technology to gently collate bottled, cartoned, canned and other products into pack-patterns without the use of tampers or escapement pins. Remarkable stability control results in faster handling than traditional metering methods. Tool-free changeovers and the intuitive HMI control panel also increase productivity.The appropriate technology is determined based on speeds and your product. Slipstream⢠offers more stability as product moves faster, especially with unstable product or odd size/shaped packaging.Continuous motion partition insertion - When product partitions are included, servo controls precisely position and insert partitions without interruption.More Flexibility, More Accuracy, More Performance.Most changeovers are accomplished through a simple menu-driven process on the HMI. Operators simply select from pre-programmed recipes for specific products, and servo motors precisely make the required adjustments.Recipe control of machine motions makes changeover precise and repeatable, minimizing ramp-up time.
Note Note
Specifications subject to change without notice.
Power Alternating Current Ac Voltage
480 V
Power Frequency
50 Hz | 60 Hz
Power Note For Power
Other Power Sources Available.
Power Number Of Phase
3
Power Voltage Drop
One Glue Drop | One Main Drop
Specifications Adjustments
Tool-free changeover, HMI selectable recipes, threaded screws, handwheels, and handknobs with position pointers and digital scales.
Specifications Brand
Axiom® | Douglas
Specifications Case Handling

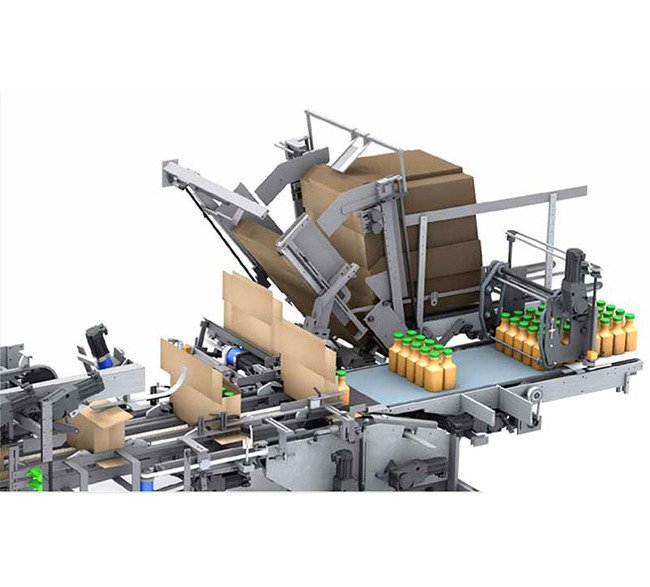

6 ft magazine, vacuum pick and blank setup, side shuttle merge of blank with product flow.
Specifications Case Sealing
NORDSON® ProBlue® 15 glue system Continuous motion flap folding and compression system.
Specifications Case Types
Wrap around cases (RSC, POL, or FOL flaps) and trays.
Specifications Drive Functions
Servo
Specifications Electrical
Rockwell Automation (AB) programmable logic controller, servos, drives and PV+ HMI.NEMA 12 wiring and enclosures.Washdown (optional).
Specifications Framefinish
Powder coated tubular cold rolled steel, gray metallic, Dupont 616.
Specifications Guarding
Category 3 guarding.Full length polycarbonate with extruded anodized aluminum frames.
Specifications Package Type
Case | Tray
Specifications Product Loading

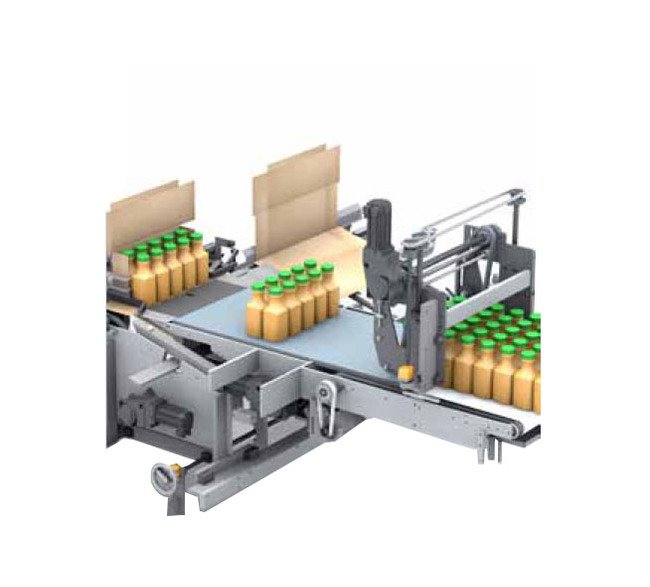

Inline product flow with direct loading onto the case bottom.
Specifications Speed
Up to 55 cases/min
