Axiom® IM Series Case/Tray Packer - High-Speed Motion Packaging Solution
Axiom® IM Series Case/Tray Packer - High-Speed Motion Packaging Solution
SKU:MAC-8f245a
Experience high-speed precision with the Axiom® IM Series Case/Tray Packer. Up to 45 cases/trays per minute, flexible conveying, & automated changeovers for efficient operations.
Regular price
$59,999.99
Regular price
Sale price
$59,999.99
Unit price
per
Initiate Order
Axiom® IM Series Case/Tray Packer - High-Speed Motion Packaging Solution
$59,999.99
Quantity: 1
Claim Your Seller Account
Axiom® IM Series Case/Tray Packer - High-Speed Motion Packaging Solution
$59,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

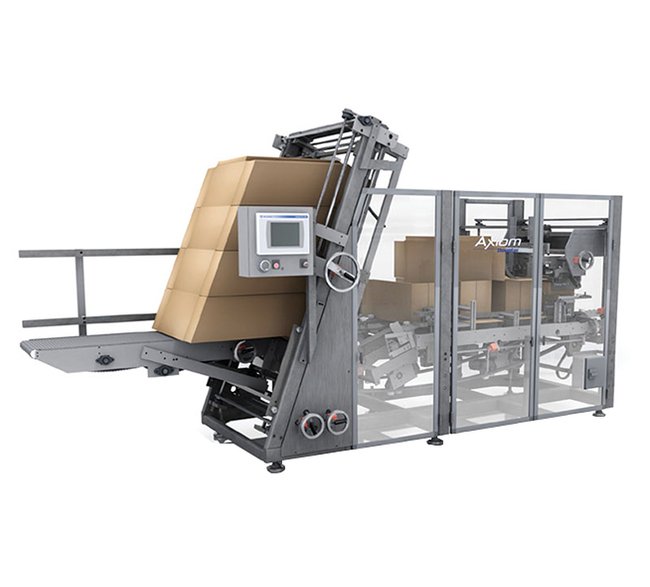

The Axiom® IM Series Case/Tray Packer is a cutting-edge packaging solution designed for high-speed operation, delivering up to 45 cases/trays per minute with servo-controlled precision. Its open frame modular design allows seamless adaptation to changing product cycles, alongside industry-leading performance. Features like flexible conveying, efficient pack pattern collating, and automated changeovers enhance operational efficiency while ensuring gentle product handling for optimal package integrity.
Product Specifications
Air Pressure Air Pressure
90 psi | 6.2 bar
Air Pressure Air Pressure Drop
One
Features Features
Flexible Conveying and Product HandlingA variety of advanced infeed solutions are offered to optimize performance for specific product types while maintaining gentle product handling to ensure highest package integrity. Some commonly used systems include:Servo Lane Mergers and Dividers - Perfect for applications where any shape or sized product cannot be flood or mass fed. A fixed number of products are smoothly fed to metering systems, where balanced product lanes are required.Recirculating Conveyor - A complete recirculating loop system that controls product population and reduces line pressure as products are distributed into lanes.Efficient Pack Pattern Collating and LoadingDouglas redefines the role of product pattern collating in high efficiency lines. Patented technologies offer dramatic improvements to line throughput and production volume while providing remarkably stable product handling.Velocity II⢠High Speed Stacker - Gently forms stacked-product patterns without interruption, providing continuous product flow at speeds to 600 products/min. Patented techniques include an increased flexibility for running different product heights while still providing tool-free changeovers with an intuitive control panel.Pick and Place - Ideal for products such as tapered cups that cannot be pushed one against the other. We use a variety of vacuum or mechanical techniques depending on the application.Raise on Return Loading - This high-speed loading technique starts to accumulate product for the next pack pattern as soon as the loader clears the accumulation section.Automated changeovers offer dramatic improvements to line efficiencies and reduce operator errors.Most changeovers are accomplished through a simple menu-driven process on the HMI. Operators simply select from pre-programmed "recipes" for specific products, and servo motors precisely make the required adjustments.Recipe control of machine motions makes changeover precise and repeatable, minimizing ramp-up time.Maximizing Speed and EfficiencyFrom infeed, through product handling to compression, Axiom® is designed from the ground up to ensure accurate, streamlined production. Our walk in frame design, patented blank loading features and compression functions further increase speed and efficiencies.ASU - Angled Setup - Setup corrugate magazine design offers immediate machine access. The lower corrugate loading position reduces the blank travel distance for maximum efficiency.FLAP TRAPS AND TUCKERS - Another contributor to increased efficiency and speed is the ability to consistently control and fold case flaps. Flap traps and minor flap tuckers are servo driven to control their speed and timing. Servo driven flap traps operate consistently at all speeds to capture the case during setup, one of the most critical areas impacting efficiency. Precise control of tucker speed and timing is the best method for folding at the flap score line.CASE SQUARING - Four corner case control squares the leading and trailing walls of the case just prior to case sealing and compression. Again, servo control of the squaring guarantees precise operation. One touch jam clearing is accomplished through the HMI by automated manipulationof compression components to quickly and efficiently clear the affected area.
Note Note
Specifications subject to change without notice.
Power Alternating Current Ac Voltage
480 V
Power Frequency
50 Hz | 60 Hz
Power Note For Power
Other Power Sources Available.
Power Number Of Phase
3
Power Voltage Drop
One Glue Drop | One Main Drop
Specifications Adjustments
Threaded screws, handwheels and handknobs with position pointers and scales. Digital scales, phase adjustments and recipe control of servo motions and glue. (optional)
Specifications Brand
Axiom® | Douglas
Specifications Drive
Servo Motors
Specifications Electrical
Allen Bradley ControlLogix motion and logic control or per project specification.Allen Bradley Panel view.NEMA 12 wiring and enclosures.NEMA 4 or 4X wiring and enclosures (optional).Light or heavy washdown construction (optional).
Specifications Flap Closing And Compression
Servo Motors
Specifications Flight Chains
#60 Series Chain
Specifications Framefinish
Stainless steel frame. Some parts are gray metallic or charcoal gray epoxy powder coat. Other colors per project specification. All parts in contact with product are stainless steel, anodized aluminum, and plastic OEM parts are manufacturers' standard finish.
Specifications Glue System
NORDSON® ProBlue® or Per Project Specification
Specifications Guarding
Full length polycarbonate with extruded anodized aluminum frames.Radius package available.
Specifications Magazine Capacity
6 ft | 1.85 m
Specifications Package Size Range
Per Project Specification
Specifications Package Type
Case | Tray
Specifications Pitch
Application Dependent
Specifications Product Size Range
Per Project Specification
Specifications Speed
Up to 45 Cases/Trays Per Minute (Product and Pack Pattern Dependent)
