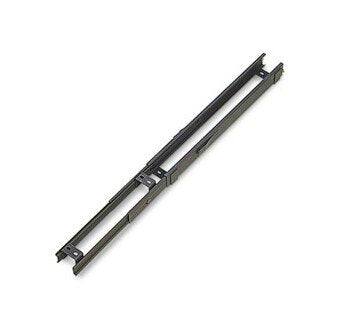

B-200/B-300 Solid Bearing Bottom Mount Slide
B-200/B-300 Solid Bearing Bottom Mount Slide
SKU:CHA-760621
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
B-200/B-300 Solid Bearing Bottom Mount Slide
$49.99
Quantity: 1
Claim Your Seller Account
B-200/B-300 Solid Bearing Bottom Mount Slide
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Product Specifications
Notes 0
Slides are sold non-handed items.Finish: All slides are coated with Poxylube® dry film lubricant.All standard slides are designed to lock in the extended position. If this feature is not desirable, order model B-300 for automatic release.Standard hardware packages include all hardware necessary to mount your Chassis Irak® slides(10) #10;-32 X.38 B.H.M.S.(10) #10;-32 KEPS® nutsAll sliding members of this slide are made from cold rolled steel.All Chassis Trak solid bearing slides are supplied with a quick disconnect feature. This permits the entire chassis to be easily removed and replaced.Optional mounting patterns, slide lengths, and extensions are available.Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). This capacity has a 100% static (non-moving) load safety factor at full extension. It is not intended for operation with loads exceeding specified load capacity. For increased load capacity, multiply the number of slides required for the application.
Specifications Features
Positive Lockout
Specifications Finish
Poxylube
Specifications Forward Extension B
17.00 in
Specifications Gdi Reference
CC5001-00-0160
Specifications Model
B-200

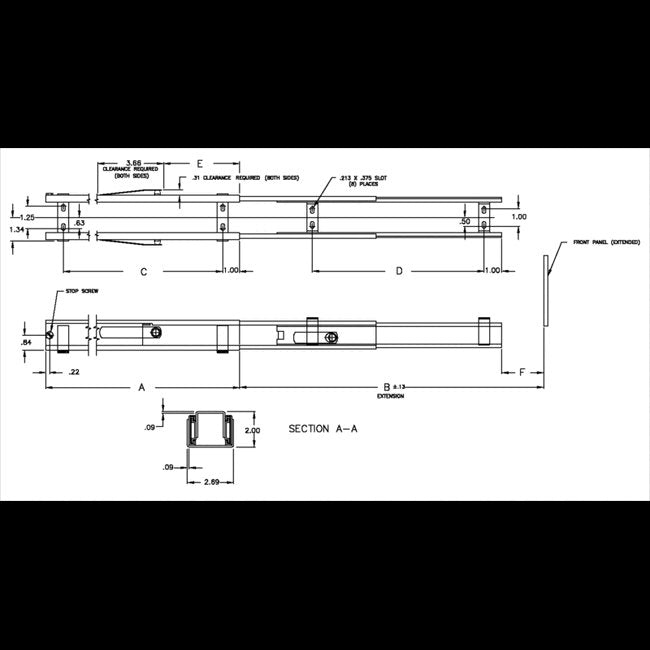

Specifications Slide Length A
16.00 in
Specifications Spec Sheets
B-200-B-300.pdf
Specifications Weight Capacity
150 lbs
Specifications Weight Capacity Notes
Load capacity is based on one slide at full extension with the load (center of gravity) at the midpoint of the slide (chassis section). This capacity has a 100% static (non-moving) load safety factor at full extension. It is not intended for operation with loads exceeding specified load capacity. For increased load capacity, multiply the number of slides required for the application.
