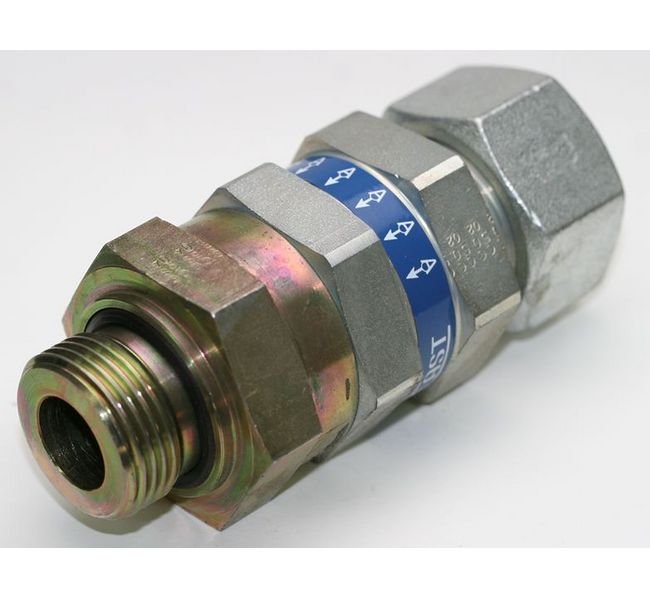

B3 Ring Male Stud Non Return Valve
B3 Ring Male Stud Non Return Valve
SKU:VAL-d85423
Reliable B3 Ring Male Stud Valve for hydraulic systems. Light-duty pressure up to 250 bar. BSP Parallel thread. Carbon Steel construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
B3 Ring Male Stud Non Return Valve
$29.99
Quantity: 1
Claim Your Seller Account
B3 Ring Male Stud Non Return Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The B3 Ring Male Stud Non Return Valve with Elastomer Seal ensures light-duty pressure operation up to 250 bar. Crafted from high-quality Carbon Steel, this valve features a 10.0mm tube diameter, 1/4" G-thread size, and precise dimensions for seamless integration into hydraulic systems. The BSP Parallel threading adds versatility, while the innovative design with CH1 and CH2 dimensions optimizes flow control. Trust in this valve for reliable performance and durability in industrial settings.

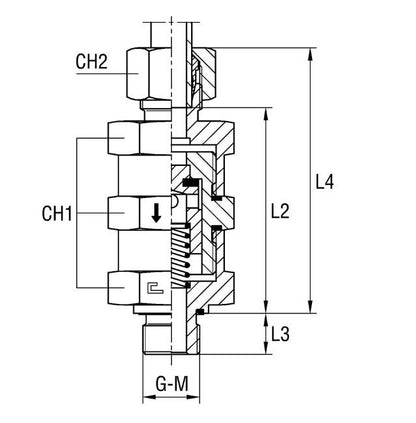

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L2
54.0 mm
Specifications L3
12.0 mm
Specifications L4
68.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
