Baffled Box Silicon Monoxide Source
Baffled Box Silicon Monoxide Source
SKU:BAF-f8594f
Dependable Baffled Box Silicon Monoxide Source for precise and controlled material deposition.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Baffled Box Silicon Monoxide Source
$499.99
Quantity: 1
Claim Your Seller Account
Baffled Box Silicon Monoxide Source
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

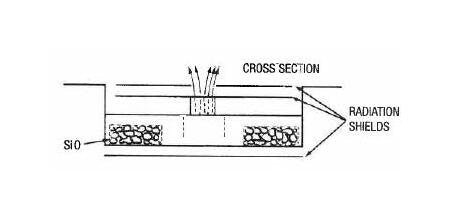

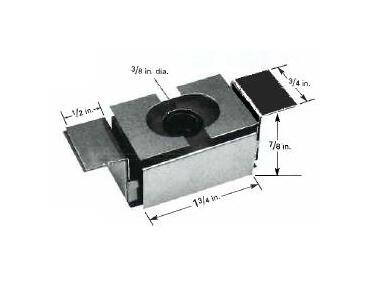

The Baffled Box Silicon Monoxide Source by R.D. Mathis Company is a proven and reliable method for depositing Silicon Monoxide. Designed with two separate cavities and an indirect path through baffles, this source eliminates spitting and streaming issues, preventing pinholes during deposition. With dimensions of 1 3/4" base length, 3/8" hole diameter, and a height of 7/8", weighing 3.5g, and requiring 500W power, this source offers precise and controlled material deposition. Additional sizes available upon request to meet specific institutional needs.
Product Specifications
Manufacturing Notes 0
Additional sizes are available upon request.
Specifications Base Length
1 3/4 in
Specifications Height
7/8 in
Specifications Hole Diameter
3/8 in
Specifications Material Weight
3.5 g
Specifications Positioning Type
Inverted
Specifications Power
500 W
