Baffled Box Silicon Monoxide / Zinc Sulphide Source
Baffled Box Silicon Monoxide / Zinc Sulphide Source
SKU:BAF-16a5f7
Cutting-edge source for precise Silicon Monoxide deposition, with controlled material path to prevent defects. Dimensions: W:6.375 in, OL:12.000 in.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Baffled Box Silicon Monoxide / Zinc Sulphide Source
$2,499.99
Quantity: 1
Claim Your Seller Account
Baffled Box Silicon Monoxide / Zinc Sulphide Source
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

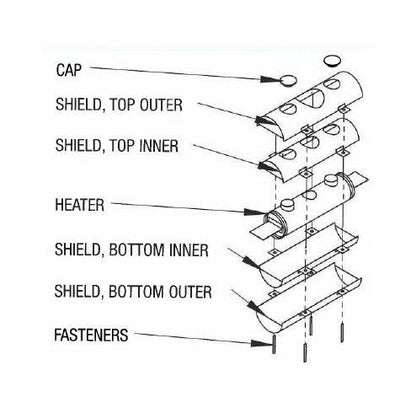

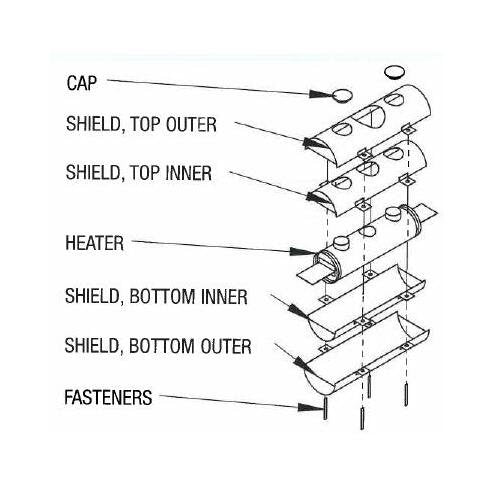

The Baffled Box Silicon Monoxide / Zinc Sulphide Source is a cutting-edge solution for precise deposition of Silicon Monoxide. Designed with separate cavities and baffles, this source ensures a controlled indirect path for the material, preventing spitting and streaming. With dimensions W: 6.375 in, OL: 12.000 in, and a volume of 1500 cm³, it offers reliable performance while meeting the highest standards of purity and precision required in institutional settings.
Product Specifications
Manufacturing Notes 0
Volumes shown are maximums.Recommended usage is 50% of volumes indicated.

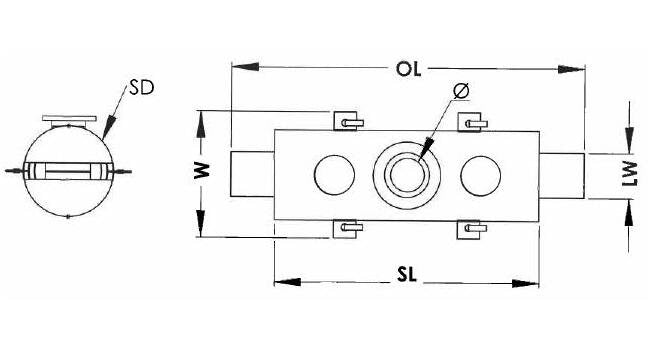

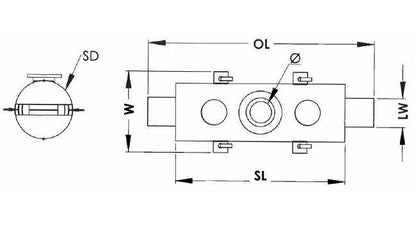

Specifications Diameter
1.000 in
Specifications Dimension Lw
2.000 in
Specifications Dimension Ol
12.000 in
Specifications Dimension Sd
5.188 in
Specifications Dimension Sl
8.25 in
Specifications Dimension W
6.375 in
Specifications Volume
1500 cm³
