Baileigh 16 Inch Bench Top Drill Press
Baileigh 16 Inch Bench Top Drill Press
SKU:DRI-9e2e3e
Powerful 16" bench top drill press with safety features and warranty support. Ideal for workshops and institutional buyers.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Baileigh 16 Inch Bench Top Drill Press
$1,299.99
Quantity: 1
Claim Your Seller Account
Baileigh 16 Inch Bench Top Drill Press
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

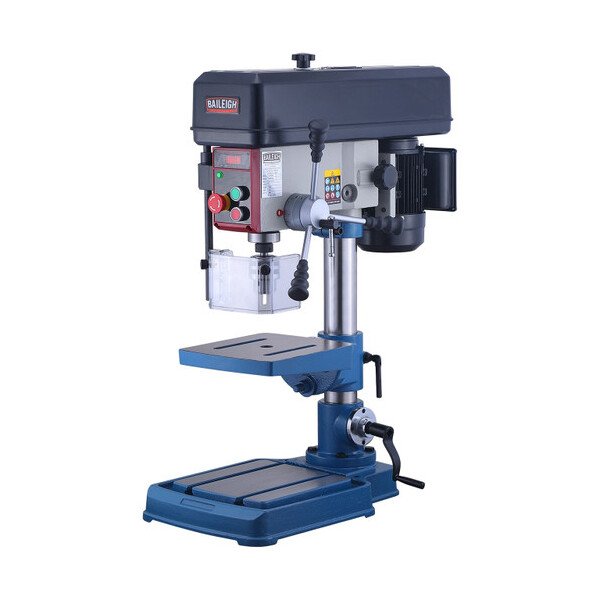

The Baileigh 16 Inch Bench Top Drill Press is a powerful and compact solution for both consumer and institutional buyers. With a 1/2 HP motor and spindle speeds ranging from 250 to 2900 rpm, this drill press can handle a variety of tasks with ease. The 2-3/4" wide steel column ensures stability even at full capacity, while the rigid cast iron base and table add strength to its structure. It includes safety features like a shield around the drill head and comes with a 1-year parts warranty and lifetime technical support. Perfect for workshops, sites, and procurement compliance.
Product Specifications
Features Features
1/2 hp motor requires 110-volt power and will work at virtually any shop or site.Belt-driven head drills a maximum capacity of 5/8" steel.Spindle speeds in the range from 250 to 2900 rpm to suit your application.2-3/4" wide steel column eliminates flexing even when drilling at full capacity.Rigid cast iron base and table add strength to the drill's structure.The table even tilts left or right to 45 degrees.Includes a safety shield around the drill head to protect you.Baileigh backs this bench-top drill press machine with a 1-year parts warranty and lifetime technical support by phone from their experienced team.
Technical Specs 360 Degrees Rotating Head
Yes
Technical Specs Base Size
10.63 x 10.03 in
Technical Specs Brands
Baileigh
Technical Specs Chuck Capacity B16
0.03 to 0.625 in
Technical Specs Diameter Of Column
2-3/4 in
Technical Specs Distance From Spindle To Base
22.83 in
Technical Specs Distance From Spindle To Table
13.18 in
Technical Specs Drill Capacity Cast Iron
1-1/16 in
Technical Specs Drill Capacity In Steel
3/4 in
Technical Specs Maximum Load Capacity
132 lb
Technical Specs Overall Size
29.13 x 17.52 x 41.33 in
Technical Specs Part Number
DP-4016B
Technical Specs Power
110 V
Technical Specs Shipping Dimensions
48 x 30 x 21 in
Technical Specs Shipping Weight
269 lb
Technical Specs Speed
16 rpm
Technical Specs Spindle Speeds
5
Technical Specs Spindle Speed Range
250 to 2900 rpm
Technical Specs Spindle Taper
MT2
Technical Specs Spindle Travel
3.93 in | 3.93 mm
Technical Specs Swing
16 in
Technical Specs Table Angle Adj L Or R
45 º
Technical Specs Table Size
11.14 x 9.76 in
Technical Specs T Slot Width At 2
0.531 in
