Baileigh DP-1200VS Heavy Duty Variable Speed Drill Press
Baileigh DP-1200VS Heavy Duty Variable Speed Drill Press
SKU:DRI-94b686
The Baileigh DP-1200VS Drill Press: Power, Precision, and Durability for Machinists and Fabricators.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
Baileigh DP-1200VS Heavy Duty Variable Speed Drill Press
$4,799.99
Quantity: 1
Claim Your Seller Account
Baileigh DP-1200VS Heavy Duty Variable Speed Drill Press
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

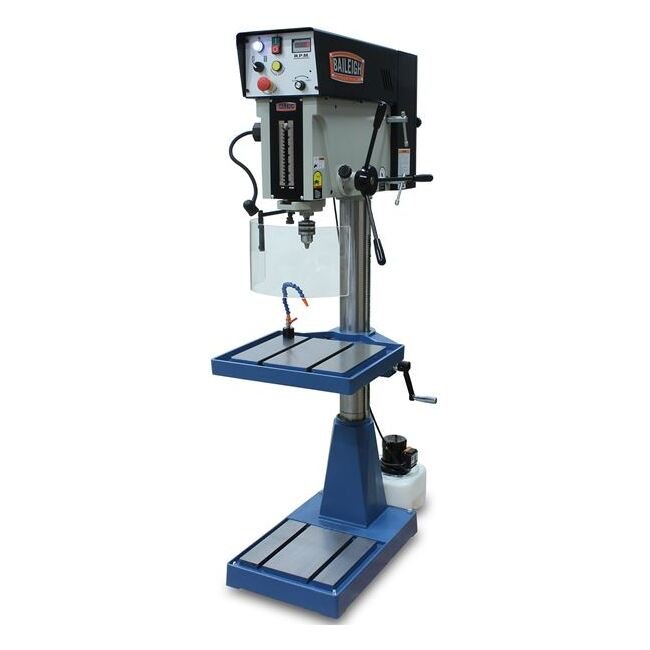

The Baileigh DP-1200VS floor drill press is a durable and versatile investment tailored for machinists and fabricators. With a 22" swing and powerful features like a 2 hp motor running on 110-volt power, a heavy-duty spindle for drilling up to 1-1/16" mild steel, and variable drilling speeds from 120 to 2000 rpm, this drill press ensures precision and efficiency in every operation. The robust construction, auto-reversing tap function, 4-1/2" wide column for added support, and industry-leading warranty make the DP-1200VS a reliable choice for long-term performance and accurate results.
Product Specifications
Features Features

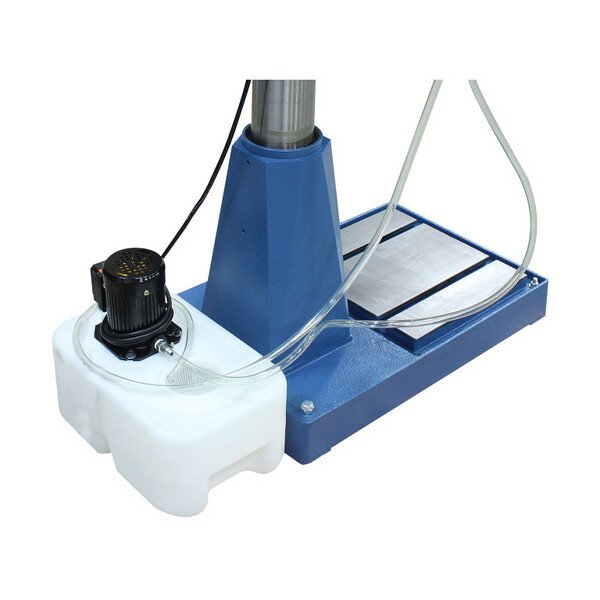

2 hp motor runs on just 110 volt power.Tackles a maximum drilling capacity of 1-1/16" mild steel.Heavy duty spindle transfers power to the #3; Morse taper toolingSpeed potentiometer dial controls powerful inverter-driven head.Variable drilling speed, ranging from 120 to 2000 rpm, lets you choose the right setting to suit your application.Digital readout displays actual spindle rpm, ensuring precise results time after time.Features an auto-reversing tap function with up to 5/8" capacity.4-1/2" Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.Base and 22" x 18.5" table are made of a heavy iron casting to increase rigidity.Very large .625" T-slots let a vise or fixture securely hold your material.Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh's team of experienced reps.
Technical Specs Base Size
25-3/4 x 16-1/2 in
Technical Specs Brands
Baileigh
Technical Specs Column Diameter
4.52 in
Technical Specs Diameter Of Column
4 in
Technical Specs Drill Capacity
1.25 in
Technical Specs Drill Capacity In Steel
1-1/16 in
Technical Specs Maximum Distance Between Spindle Nose And Table
23-1/2 in
Technical Specs Minimum Distance Between Spindle Nose And Table
1-1/4
Technical Specs Motor Phase
2 hp
Technical Specs Part Number
DP-1200VS
Technical Specs Power
220 V
Technical Specs Power Phase
1 pH
Technical Specs Quill Diameter
3 in
Technical Specs Shipping Dimensions
61 x 44 x 82 in
Technical Specs Shipping Weight
650 lb
Technical Specs Spindle Nose To Base
44 to 1/2 in
Technical Specs Spindle Nose To Table
36.41 in
Technical Specs Spindle Taper
MT3
Technical Specs Spindle Travel
5.9 in | 5.9 mm
Technical Specs Stroke
6 in
Technical Specs Swing
20.8 in
Technical Specs Table Size
16-3/4 x 19 in
Technical Specs Table Slots
0.625 in
Technical Specs Tapping Capacity
1/2 in
