The Baileigh DP-1400VS Variable Speed Drill Press is a powerhouse designed for precision and durability. With a robust base and column, this drill press can handle the toughest drilling tasks effortlessly. Featuring a unique 360-degree pivoting table, a 2HP motor, and a drilling capacity of 1-1/16" mild steel, this machine offers versatility and power in one package. The inverter-driven head allows for variable drilling speeds from 120 to 2000 rpm, ensuring optimal settings for different applications. Equipped with a digital readout for spindle rpm accuracy, an auto-reversing tap function, and a coolant system for extended tool lifespan, the DP-1400VS is the go-to choice for machinists and fabricators seeking high-performance equipment.
Product Specifications
Features Features
2 hp motor runs on just 110 volt power.Tackles a maximum drilling capacity of 1-1/16" mild steel.Heavy duty spindle transfers power to the #3; Morse taper toolingSpeed potentiometer dial controls powerful inverter-driven head.Variable drilling speed, ranging from 120 to 2000 rpm, lets you choose the right setting to suit your application.Digital readout displays actual spindle rpm, ensuring precise results time after time.Features an auto-reversing tap function with up to 5/8" capacity.4-1/2" Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.Base and 22" x 18.5" table are made of a heavy iron casting to increase rigidity.Very large .625" T-slots let a vise or fixture securely hold your material.Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh's team of experienced reps.
Special Notes Special Notes

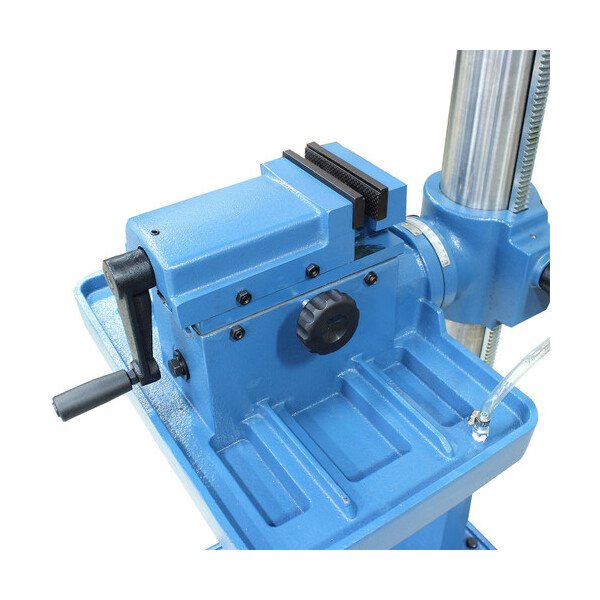

Includes integrated table vise
Technical Specs Base Length
25.5 in
Technical Specs Base Width
7.75 in
Technical Specs Brands
Baileigh
Technical Specs Column Diameter
4 in
Technical Specs Diameter Of Column
4 in
Technical Specs Drill Capacity
1.25 in
Technical Specs Motor Phase
2 hp
Technical Specs Part Number
DP-1400VS
Technical Specs Power
220 V
Technical Specs Power Phase
1 pH
Technical Specs Quill Diameter
2.44 in
Technical Specs Shipping Dimensions
60 x 44 x 81 in
Technical Specs Shipping Weight
760 lb
Technical Specs Spindle Nose To Base
44 to 3/4 in
Technical Specs Spindle Nose To Table
28-1/2 in
Technical Specs Spindle Speed High
230 to 2500 rpm
Technical Specs Spindle Speed Low
80 to 1000 rpm
Technical Specs Spindle Taper
MT 3
Technical Specs Spindle Travel
5.9 mm
Technical Specs Swing
18 in
Technical Specs Table Angle Adj L Or R
360 º
Technical Specs Table Size
18-3/4 x 12-1/4 in
Technical Specs Table Slots
0.551 in
Technical Specs Tapping Capacity
5/8 in
