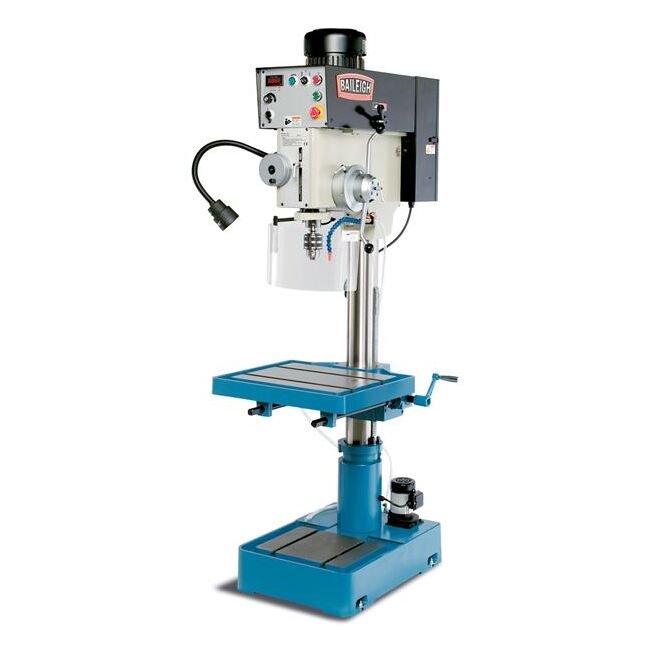

Baileigh DP-1500VS Professional Drill Press
Baileigh DP-1500VS Professional Drill Press
SKU:DRI-27791e
High-performance Baileigh DP-1500VS Drill Press with 2 hp motor, versatile speed range, and durable construction for precise drilling in steel and cast iron.
Regular price
$7,799.99
Regular price
Sale price
$7,799.99
Unit price
per
Initiate Order
Baileigh DP-1500VS Professional Drill Press
$7,799.99
Quantity: 1
Claim Your Seller Account
Baileigh DP-1500VS Professional Drill Press
$7,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your drilling operations with the Baileigh DP-1500VS Variable Speed Inverter Driven Drill Press. This robust 20" floor-type drill press offers precise drilling in both steel and cast iron with a maximum capacity of 1.5" and 1.75", respectively. Featuring a powerful 2 hp motor, a wide speed range from 65 to 2000 rpm, and advanced features like auto-reversing tapping and a potent coolant system, this drill press ensures efficiency and durability. Baileigh's DP-1500VS incorporates quality materials for enhanced strength and includes convenient elements like a tool ejector chuck and an adjustable work light, making it a reliable choice for industrial and institutional users.
Product Specifications
Additional Information Additional Information
Why choose the DP-1500VS over similar drill presses?You can extend tooling usage by adjusting the inverter-driven head and quill speed to each different drill size.Continuous speed range, instead of just a few pre-set speeds, allows you to fine-tune the setting as you work.We use only the best-quality heavy metal castings for the base and table to add to the overall strength of the drill press.The DP-1500VS comes standard with features that other brands consider upgrades, like coolant systems and work lights.You can call up Baileigh's team of seasoned customer service reps any time for troubleshooting or expert advice on how to get the most out of the machine.
Features Features
2 hp motor runs on 220-volt single-phase power and will work practically anywhere.Handles a maximum drilling capacity of 1.5" steel and 1.75" cast iron.Auto-reversing tapping feature has a capacity of .937".Speed range from 65 to 2000 rpm lets you pick the right setting for your project.Potentiometer dial controls the drill speed.Digital readout on the front displays the speed in rpm for easy checking.Sophisticated Delta® inverter drives #4; Morse taper spindle.Chuck with automatic tool ejector simplifies tooling changes.Large, machined 22" x 18.5" drill table offers plenty of room for material.Oversized .625" T-slots allow for secure clamping of a vise or fixture.Sturdy 4.52" column eliminates flex and boosts drilling accuracy.Cast base supports rigidity at maximum capacity.Power-down feed helps to prolong the machineâs lifetime of use.Safety guard around the spindle with a limit switch protects you and your shop.Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.Includes a bright halogen light that bends to enable you to see the material better as you work.Baileigh covers this drill with a 1-year parts warranty and lifetime technical support.
Technical Specs Base Dimensions
27 x 19 in
Technical Specs Brands
Baileigh
Technical Specs Column Diameter
4.52 in
Technical Specs Distance From Spindle Nose To Table
22.75 in
Technical Specs Drilling Capacity Cast Iron
1.75 in
Technical Specs Drilling Capacity Steel
1.5 in
Technical Specs High Spindle Speed
245 to 2000 rpm
Technical Specs Low Spindle Speed
65 to 540 rpm
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Motor Voltage
220 V
Technical Specs Number Of Phase
1
Technical Specs Power
220 V
Technical Specs Quill Diameter
2.95 in
Technical Specs Quill Down Feed Rates
0.002 | 0.004 | 0.0078
Technical Specs Shipping Dimensions
60 x 44 x 88 in
Technical Specs Shipping Weight
990 lb
Technical Specs Spindle Taper
MT4
Technical Specs Spindle Travel
5.9 in
Technical Specs Table Size
22 x 18.5 in
Technical Specs Table Slots
0.625 in
Technical Specs Tapping Capacity
0.937 in
