Baileigh DP-1850G Gear Driven Drill Press - Heavy-Duty Industrial Machine
Baileigh DP-1850G Gear Driven Drill Press - Heavy-Duty Industrial Machine
SKU:DRI-38ae47
Baileigh DP-1850G Gear Driven Drill Press - Industrial powerhouse for heavy-duty drilling tasks.
Regular price
$9,999.00
Regular price
Sale price
$9,999.00
Unit price
per
Initiate Order
Baileigh DP-1850G Gear Driven Drill Press - Heavy-Duty Industrial Machine
$9,999.00
Quantity: 1
Claim Your Seller Account
Baileigh DP-1850G Gear Driven Drill Press - Heavy-Duty Industrial Machine
$9,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Baileigh DP-1850G Gear Driven Drill Press is a powerhouse designed for industrial use. With a 2 hp motor running on 220-volt 3-phase power, this drill press effortlessly handles large workpieces. Featuring a 26-3/4" swing and a tapping capacity of up to 1", it offers versatility for a wide range of applications. The adjustable gear head offers spindle speeds between 90 and 2425 rpm, while the electric Morse spindle taper feed ensures precision. Built with a robust column and cast steel base, this drill press minimizes flexing even under heavy loads. The included features like the coolant system, electronic power-down feed, and safety enhancements make it a reliable and efficient choice for fabrication and machine shops.
Product Specifications
Features Features

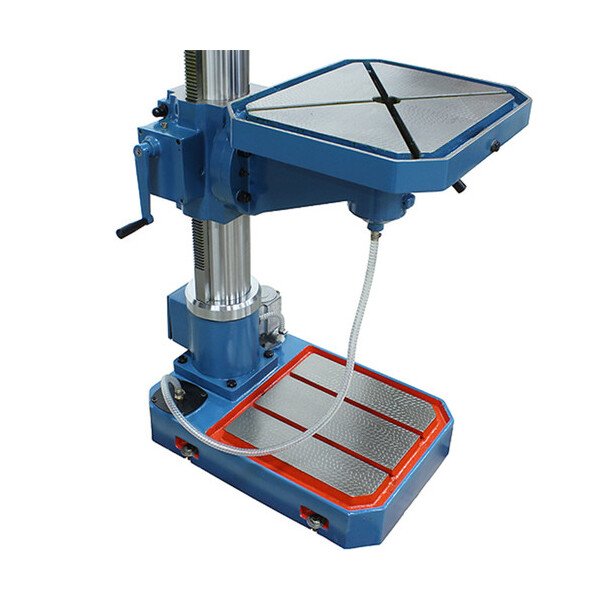

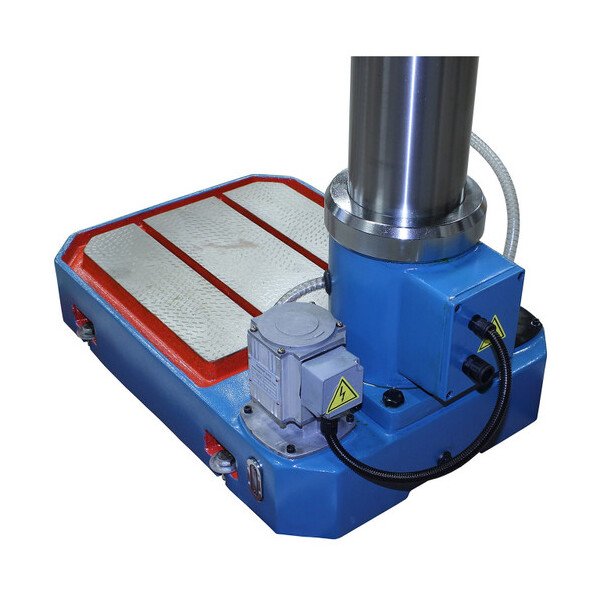

2 hp motor runs on 220-volt 3-phase power.26-3/4" swing to tackle large pieces of material.Drills a maximum capacity of 1.57" with a tapping capacity of up to 1".Gear head turns at speeds between 90 and 2425 rpm, so you can select the right speed for almost any application.#4; Morse spindle taper feed is electric and completely adjustable.Massive column and cast steel base reduce flexing even when youâre drilling at full capacity.21-1/4" x 17-1/4" work table with X-pattern T-Slots..7" table-slots allow for a vise or fixture to get a firm hold on the material.Includes an electronic power-down feed and a coolant system to prolong the drill's lifetime of use.Equipped with a chuck and an automatic tool ejector to adapt to your project quickly and easily.Comes standard with a protective shield and a halogen light for safer drilling in your shop and elsewhere.Baileigh covers this gear-driven drill press with a 1-year parts warranty plus lifetime technical support by phone.
Technical Specs Base Size
33 x 25 in
Technical Specs Brands
Baileigh
Technical Specs Distance From Spindle To Base
47 in
Technical Specs Distance From Spindle To Table
4 to 24-3/8 in
Technical Specs Motor Phase
2 hp
Technical Specs Part Number
DP-1850G
Technical Specs Power
220 V
Technical Specs Power Feed
.0047 in | .0094 in | .0157 in
Technical Specs Power Phase
3 pH
Technical Specs Shipping Dimensions
60 x 44 x 90 in
Technical Specs Shipping Weight
1225 lb
Technical Specs Spindle Speeds
12
Technical Specs Spindle Speed Range
90 to 2425 rpm
Technical Specs Spindle Taper
MT-4
Technical Specs Spindle Travel
7-3/4 in | 7-3/4 mm
Technical Specs Swing
26-3/4 in
Technical Specs Table Size
17-1/4 x 21-1/4 in
Technical Specs Tapping Capacity
7/8 in
Technical Specs T Slot Width At 2
7 in
