Baileigh DP-3814B 14" Bench Top Drill Press
Baileigh DP-3814B 14" Bench Top Drill Press
SKU:DRI-6bbcc9
Powerful Baileigh DP-3814B 14" Bench Top Drill Press for precise drilling tasks with ease. Backed by a 1-year warranty.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Baileigh DP-3814B 14" Bench Top Drill Press
$1,299.99
Quantity: 1
Claim Your Seller Account
Baileigh DP-3814B 14" Bench Top Drill Press
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

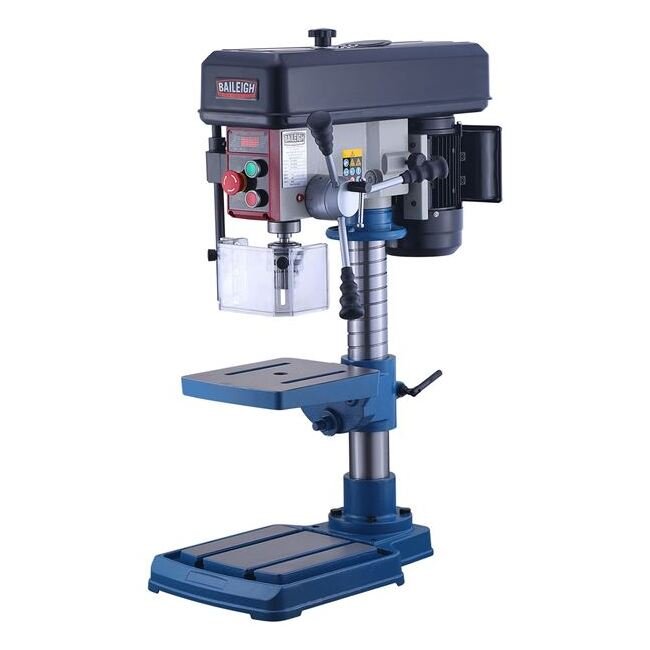

The Baileigh DP-3814B 14" Bench Top Drill Press is a powerful and compact solution for your drilling needs. With a 1/2 hp motor, this drill press can handle tasks with ease. Its spindle speeds ranging from 250 to 2900 rpm allow for versatile applications. Featuring a sturdy steel column, adjustable table angles, and a safety shield, it ensures precision and protection. Backed by Baileigh's 1-year parts warranty and lifetime technical support, this drill press is a reliable addition to any workshop or site.
Product Specifications
Features Features

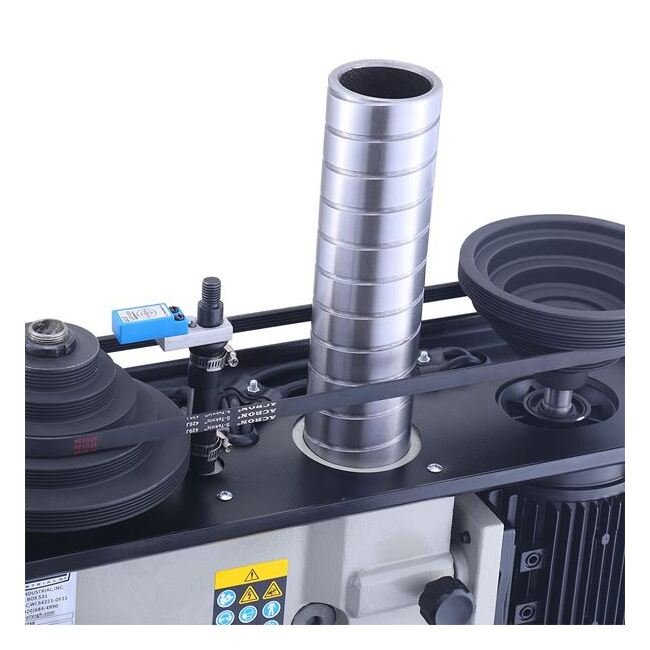

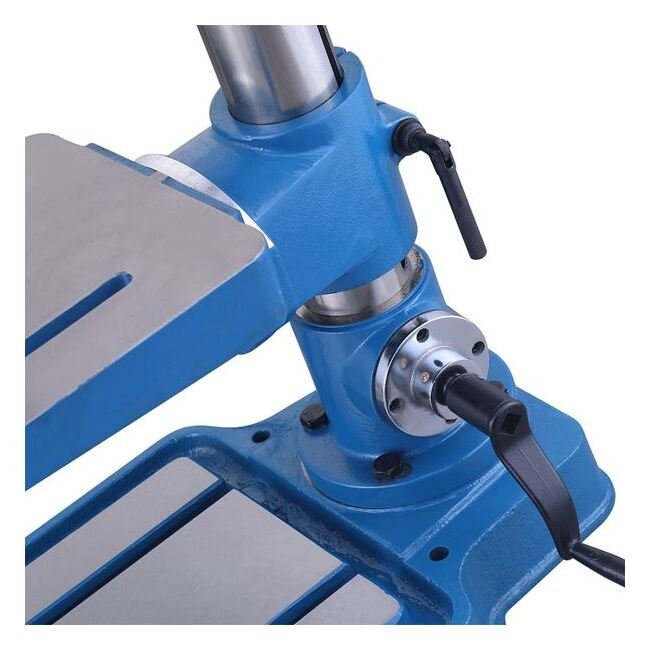

1/2 hp motor requires 110-volt power and will work at virtually any shop or site.Belt-driven head drills a maximum capacity of 5/8" steel.Spindle speeds in the range from 250 to 2900 rpm to suit your application.2-3/4" wide steel column eliminates flexing even when drilling at full capacity.Easy to adjust table and head position with its clever screw type column.Rigid cast iron base and table add strength to the drill's structure.The table even tilts left or right to 45 degrees.Includes a safety shield around the drill head to protect you.Baileigh backs this bench-top drill press machine with a 1-year parts warranty and lifetime technical support by phone from their experienced team.

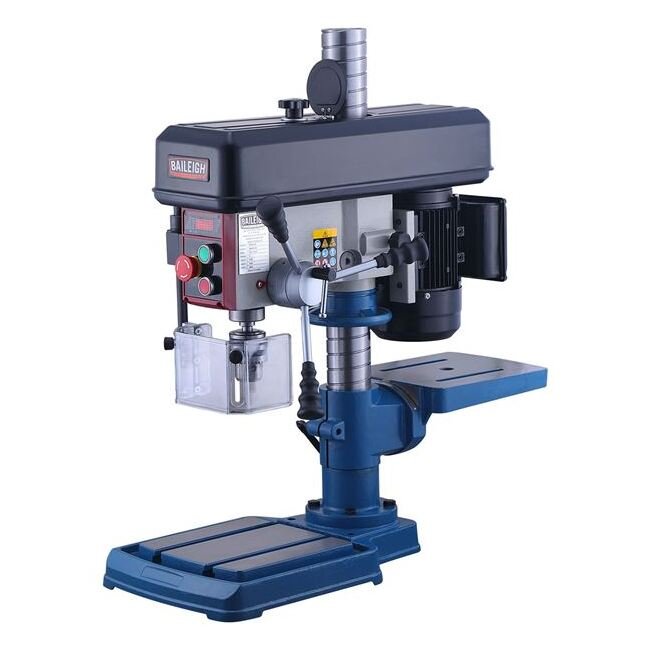

Technical Specs 360 Degrees Rotating Head
Yes
Technical Specs Base Size
18 to 3/4 x 12 to 1/2 in
Technical Specs Brands
Baileigh
Technical Specs Chuck Capacity B16
0.03 to 0.625 in
Technical Specs Diameter Of Column
2-3/4 in
Technical Specs Distance From Spindle To Base
19-5/8 in
Technical Specs Distance From Spindle To Table
11-1/2 in
Technical Specs Maximum Load Capacity
132 lb
Technical Specs Mild Steel Drilling Capacity
5/8 in
Technical Specs Overall Size
26 to 1/4 x 13 x 38 to 1/4 in
Technical Specs Part Number
DP-3814B
Technical Specs Power
110 V
Technical Specs Shipping Dimensions
48 x 31 x 16 in
Technical Specs Speed
16 rpm
Technical Specs Spindle Speeds
5 rpm
Technical Specs Spindle Speed Range
250 to 2900 rpm
Technical Specs Spindle Taper
B16
Technical Specs Spindle Travel
3-1/2 in
Technical Specs Swing
14 in
Technical Specs Table Angle Adj L Or R
45 º
Technical Specs Table Size
9 x 10 to 1/4 in
Technical Specs T Slot Width At 2
0.531 in
