Baileigh Heavy-Duty Floor Drill Press DP-2012F-HD-V3, 2 HP, 220V, MT4 Spindle
Baileigh Heavy-Duty Floor Drill Press DP-2012F-HD-V3, 2 HP, 220V, MT4 Spindle
SKU:DRI-aa6750
Baileigh Heavy-Duty Floor Drill Press DP-2012F-HD-V3: 20" swing, 2 HP motor, 220V, MT4 spindle, 12 speeds, 1/32" - 5/8" chuck capacity.
Regular price
$5,399.00
Regular price
Sale price
$5,399.00
Unit price
per
Initiate Order
Baileigh Heavy-Duty Floor Drill Press DP-2012F-HD-V3, 2 HP, 220V, MT4 Spindle
$5,399.00
Quantity: 1
Claim Your Seller Account
Baileigh Heavy-Duty Floor Drill Press DP-2012F-HD-V3, 2 HP, 220V, MT4 Spindle
$5,399.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

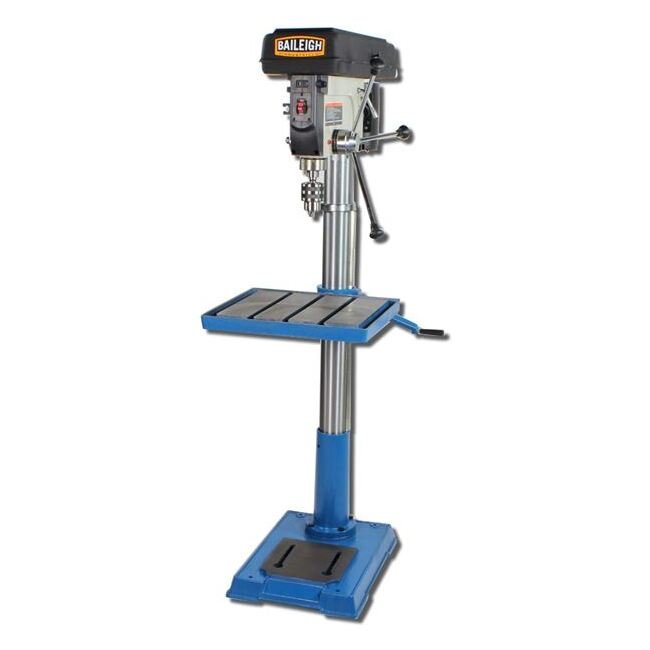

The Baileigh DP-2012F-HD-V3 Floor Drill Press is a robust solution for both consumer and institutional users requiring a high-capacity drilling machine. With a 20" swing, oversized 16.5" x 18.5" cast iron table, and sturdy 3.6" diameter column on a 24" x 16.5" cast iron base, this drill press offers exceptional rigidity and stability. Powered by a 2 HP motor running on 220V single-phase power, the MT4 spindle achieves speeds ranging from 12 to 220 to 3200 RPM through six pulleys, providing versatility for various drilling applications. The DP-2012F-HD-V3 also features a JT3 key drill chuck with a capacity of 1/32" to 5/8".
Product Specifications
Technical Specs Brands
Baileigh
Technical Specs Distance From Spindle To Base
46.75 in
Technical Specs Distance From Spindle To Table
26 in
Technical Specs Drill Capacity
1.25 in
Technical Specs Height
66.7 in
Technical Specs Horse Power
2 hp
Technical Specs Jt3 Key Drill Chuck Capacity
1/32 to 5/8 in
Technical Specs Length
35.4 in
Technical Specs Motor Revolution Per Minute Rpm
150 to 4200 rpm
Technical Specs Part Number
DP-2012F-HD-V3
Technical Specs Shipping Dimensions
69 x 44 x 24 in
Technical Specs Shipping Weight
390 lb
Technical Specs Single Phase Power
220 V
Technical Specs Spindle
MT4
Technical Specs Spindle Speed Range
12 to 220 to 3200 rpm
Technical Specs Spindle Travel
4.75 in
Technical Specs Table Size Length
16.5 in
Technical Specs Table Size Width
18.5 in
Technical Specs T Slot Size At 3
5/8 in
Technical Specs Weight
259 lb
Technical Specs Width
25.6 in
