Baileigh Heavy-Duty Gear Driven Drill Press DP-1500G
Baileigh Heavy-Duty Gear Driven Drill Press DP-1500G
SKU:DRI-1fdb67
Baileigh's DP-1500G Gear Driven Drill Press: Power and Precision for Heavy Drilling Jobs
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Baileigh Heavy-Duty Gear Driven Drill Press DP-1500G
$5,999.99
Quantity: 1
Claim Your Seller Account
Baileigh Heavy-Duty Gear Driven Drill Press DP-1500G
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

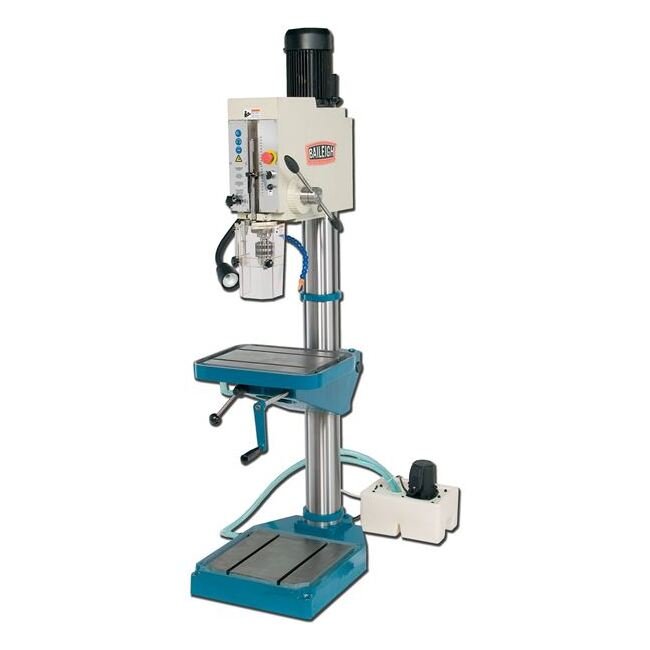

The Baileigh DP-1500G Gear Driven Drill Press is a powerhouse designed for heavy drilling jobs. Featuring a robust cast iron base and a sturdy steel column, this drill press offers unparalleled rigidity. With technical specifications like a 3.5 hp motor, 1.5' drill capacity, and 8 spindle speeds ranging from 108 to 1800 rpm, this machine ensures precise and efficient drilling operations. Additionally, it includes essential features such as a tapping capacity of 1.3', a spacious 20' x 16' table with T-slots, and safety elements like a protective shield around the drill head and a halogen work light. Backed by Baileigh's reputation for quality and a 1-year parts warranty, this drill press is a reliable choice for industrial settings.
Product Specifications
Features Features

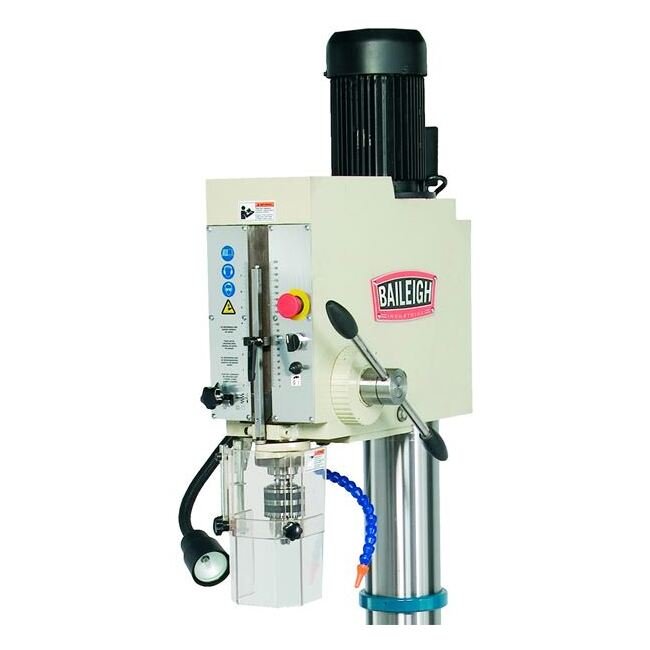

3.5 hp motor runs on 220 volt 3-phase power.Drills a maximum capacity of 1.5" mild steel.Includes an a tapping feature with a 1.3" capacity.8 speed drill press lets you select the correct setting for a project within the range of 108 to 1800 rpm.Standard #4; Morse taper transfers power from the gear head to the material.Cast iron base and mighty 5.5" diameter steel column eliminate flexing for heavy feeds at max capacity.20" x 16" table features large T-slots for a vise or fixture to hold material securely.Includes a chuck, coolant system and a flexible halogen work light as standard features, not upgrades.Protective shield around drill head keeps you and your shop safe.Baileigh backs this heavy-duty drill press for sale with a 1-year parts warranty. You can also count on their team for technical support by phone over the machine's lifetime of use.
Technical Specs Base Dimensions
19.5 x 28 in
Technical Specs Brands
Baileigh
Technical Specs Drill Capacity
1.5 in
Technical Specs Motor Horse Power Hp
3.5 hp
Technical Specs Motor Voltage
220 V
Technical Specs Number Of Phase
3
Technical Specs Number Of Spindle Speeds
8
Technical Specs Overall Height
71 in
Technical Specs Power
220 V
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
108 to 1800 rpm
Technical Specs Shipping Dimensions
86 x 23 x37 in
Technical Specs Shipping Weight
990 lb
Technical Specs Spindle Taper
MT4
Technical Specs Spindle Travel
7.48 in
Technical Specs Table Size
20 x 16 in
Technical Specs Tapping Capacity
1.3 in
