Baileigh Heavy-Duty Hydraulic Radial Drill Press RD-1600H
Baileigh Heavy-Duty Hydraulic Radial Drill Press RD-1600H
SKU:DRI-e3074f
Powerful Baileigh RD-1600H Hydraulic Radial Drill Press for industrial metalworking. 5.25hp, 63" column, MT5 spindle, and essential accessories.
Regular price
$19,999.00
Regular price
Sale price
$19,999.00
Unit price
per
Initiate Order
Baileigh Heavy-Duty Hydraulic Radial Drill Press RD-1600H
$19,999.00
Quantity: 1
Claim Your Seller Account
Baileigh Heavy-Duty Hydraulic Radial Drill Press RD-1600H
$19,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

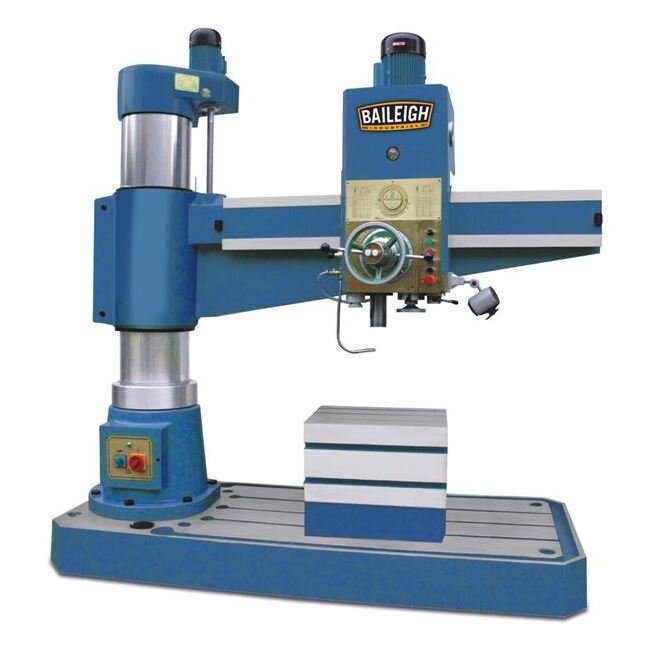

The Baileigh RD-1600H Hydraulic Radial Drill Press is a powerhouse for fabrication shops requiring precision and power. With a 5.25hp motor driven by 220V 3-phase power, it offers a large 63" column, 2" drilling capacity, and MT5 spindle for robust performance. Featuring heavy-duty construction, it comes equipped with essential accessories like spindle protection cover, industrial coolant system, and more. Ideal for industrial use, this drill press ensures efficiency and accuracy in metalworking applications.
Product Specifications
Features Features
2" maximum drilling capacityHeavy-Duty constructionPower down feedMT5 spindleLarge 63" columnBox shape worktable220V 3-phaseIncludes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
Technical Specs Base Size
94.4 x 39.3 x 7.8 in
Technical Specs Brands
Baileigh
Technical Specs Diameter Of Column
13.7 in
Technical Specs Distance Between Spindle Nose And Base
12.6 to 48 in
Technical Specs Drill Capacity
2 in
Technical Specs Maximum Distance From Column To Spindle
13.7 to 63 in
Technical Specs Motor Horse Power Hp
5.25 hp
Technical Specs Motor Voltage
220 V
Technical Specs Overall Size
98 x 40 to 96 x 103 to 112 in
Technical Specs Part Number
RD-1600H
Technical Specs Range Of Spindle Feeds
0.001 to 0.125 in
Technical Specs Shipping Dimensions
109 x 45 x 102 in
Technical Specs Shipping Weight
9500 lb
Technical Specs Spindle Feeds
16
Technical Specs Spindle Speed Range
25 to 2000 rpm
Technical Specs Spindle Taper
MT5
Technical Specs Spindle Travel
12.4 in
Technical Specs Table Size
24.8 x 19.6 x 19.6 in
