Baileigh Heavy Duty Radial Drill Press RD-1600H-VS
Baileigh Heavy Duty Radial Drill Press RD-1600H-VS
SKU:DRI-3990b1
Baileigh Heavy Duty Radial Drill Press for precise and efficient machining tasks. Variable speed, heavy-duty construction. Ideal for single workpiece or batch production.
Regular price
$18,799.99
Regular price
Sale price
$18,799.99
Unit price
per
Initiate Order
Baileigh Heavy Duty Radial Drill Press RD-1600H-VS
$18,799.99
Quantity: 1
Claim Your Seller Account
Baileigh Heavy Duty Radial Drill Press RD-1600H-VS
$18,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

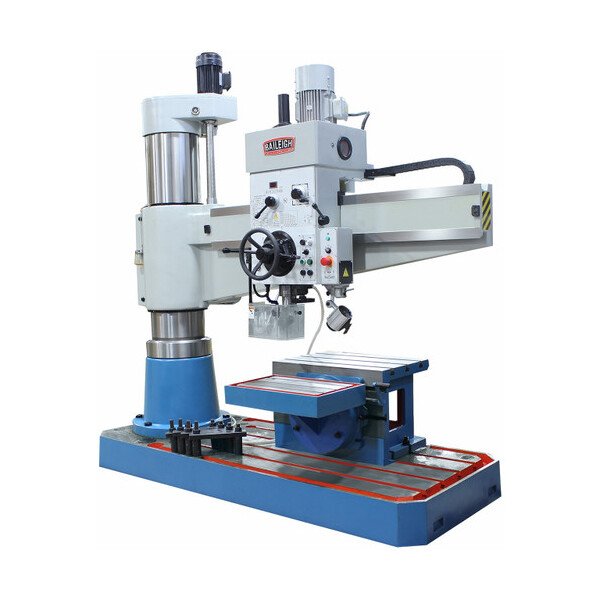

The Baileigh RD-1600H-VS Variable Speed Radial Drill Press offers precision and power for medium to small parts machining needs. With heavy-duty construction and inverter-driven variable speed capabilities ranging from 38 to 2000 rpm, this drill press is ideal for drilling, spot facing, counter-boring, and tapping operations. Its integrated coolant system, hydraulic clamping, and power down feed enhance efficiency and ease of use, making it suitable for single workpiece machining or batch production in machining workshops. Experience top-notch performance and durability with the Baileigh RD-1600H-VS.
Product Specifications
Features Features
Inverter driven, variable speed38 to 2000 rpmHeavy duty, oversized spindleIntegrated coolant system with easy to reach switchHydraulic clamping for column, arm and spindle boxPower down feed
Technical Specs Base Size
94.4 x 39.3 x 7.8 in
Technical Specs Brands
Baileigh
Technical Specs Diameter Of Column
13.7 in
Technical Specs Distance Between Spindle Nose And Base
13 to 3/4 to 49 to 1/4 in
Technical Specs Distance From Spindle Column Center
13-3/4 to 63
Technical Specs Drill Capacity
2-1/2 (No.45 steel) and 2-7/8 (HT200 Cast Iron) in
Technical Specs Minimum Arm Movement Travel Speed
47.2 in
Technical Specs Motor Phase
5.25 hp
Technical Specs Overall Size
98 x 40 x 96 x 103 x 112 Accounting for Beam Movements in
Technical Specs Part Number
RD-1600H-VS
Technical Specs Power
220 V
Technical Specs Power Phase
3 pH
Technical Specs Range Of Spindle Feed
0.0024 to 0.0394 in
Technical Specs Shipping Weight
8500 lb
Technical Specs Spindle Feeds
Inverter Driven
Technical Specs Spindle Speed Range
38 to 2000 rpm
Technical Specs Spindle Taper
MT5
Technical Specs Spindle Travel
12-3/8 in | 12-3/8 mm
Technical Specs Table Size
24.8 x 19.6 x 19.6 in
Technical Specs Tapping Capacity
1-3/4 (No.45 steel) & 2 (HT200 cast iron) in
