Baileigh High Speed Drill Press DP-1250VS-HS
Baileigh High Speed Drill Press DP-1250VS-HS
SKU:DRI-ee5139
The ultimate high-speed drill press for precision drilling with powerful 2 hp motor, 100-4000 rpm speed range, and auto-reversing tapping feature.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Baileigh High Speed Drill Press DP-1250VS-HS
$4,999.99
Quantity: 1
Claim Your Seller Account
Baileigh High Speed Drill Press DP-1250VS-HS
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

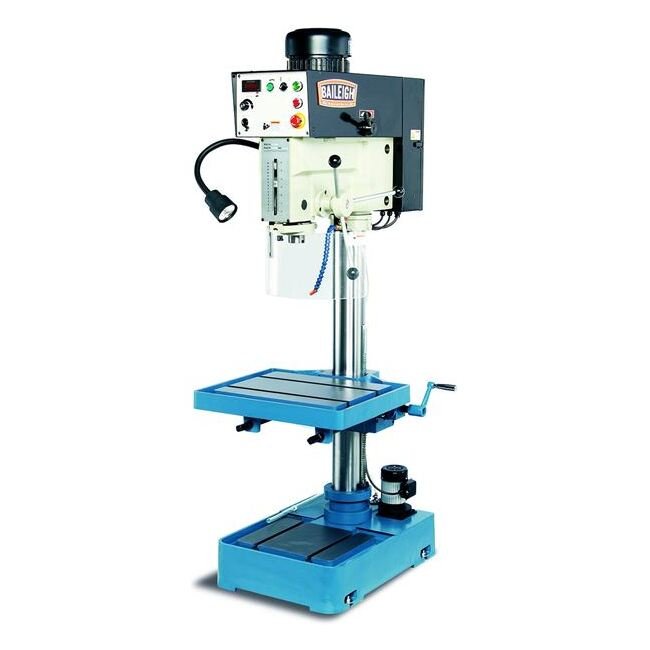

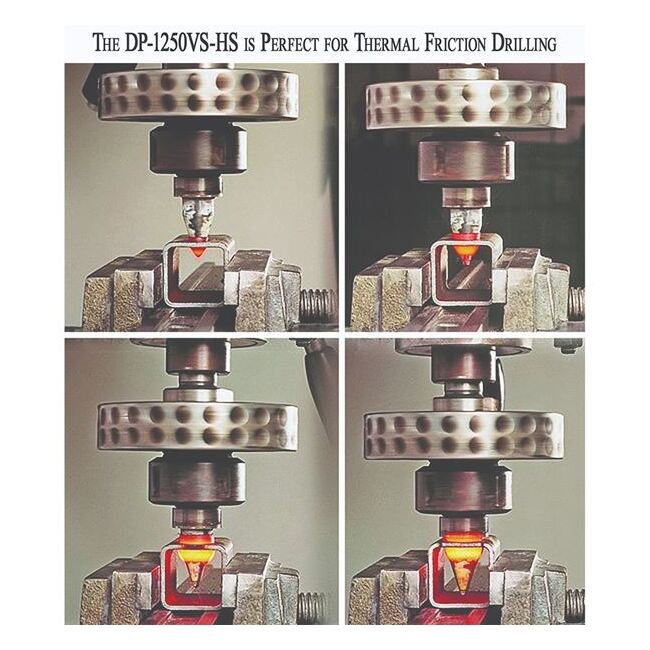

The Baileigh High Speed Drill Press DP-1250VS-HS is a professional-grade solution for precise drilling operations. With a powerful 2 hp motor running on 220-volt power, this drill press offers a wide 20" swing and a high-speed range from 100 to 4000 rpm, perfect for thermal friction drilling applications. Designed with a sturdy column diameter of 4.52 inches and a heavy-duty cast iron base, this drill press ensures stability and accuracy. The auto-reversing tapping feature and the efficient Delta inverter make operations seamless. Baileigh provides a 1-year parts warranty and lifetime technical support, guaranteeing reliability and performance.
Product Specifications
Features Features

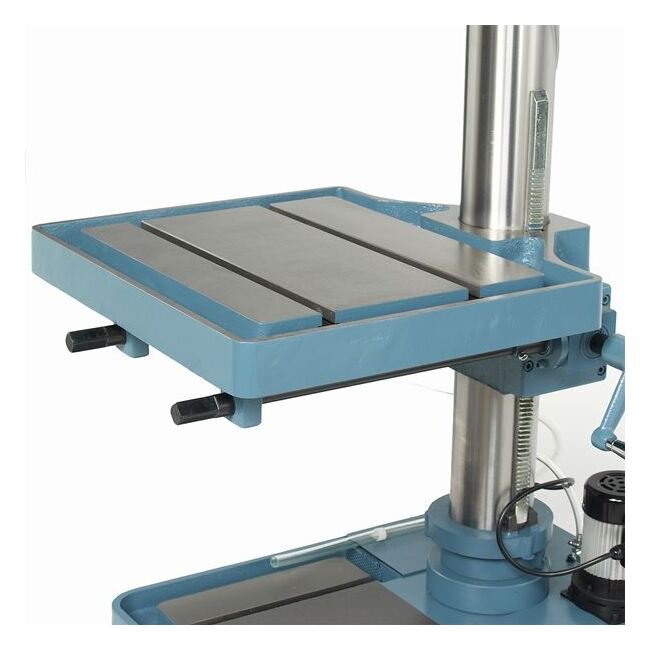

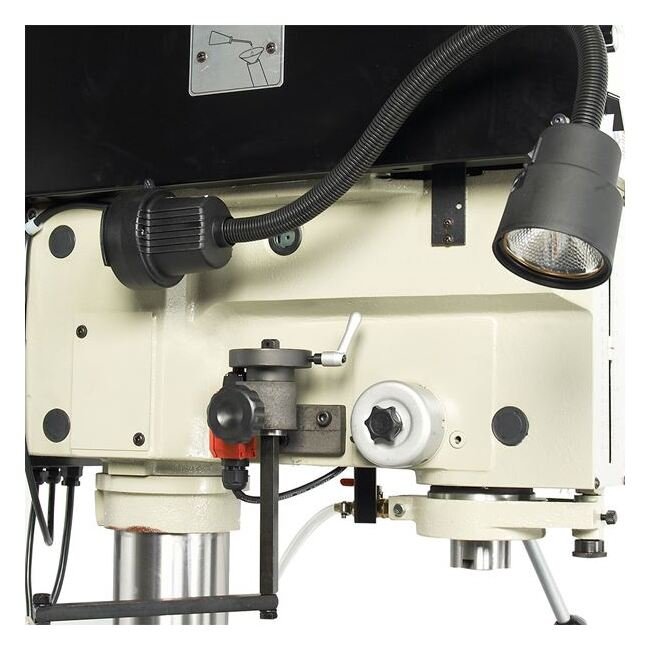

2 hp motor runs on 220-volt single-phase power.Wide 20" swing.High speed drill press handles a maximum capacity of 1.25" mild steel.Includes quality auto-reversing tapping feature with a capacity of .75" mild steel.Efficient Delta® inverter drives the mighty #4; Morse taper spindle and regulates the amount of power and rpms to the spindle.Variable speed range from 100 to 4000 rpm lets you select the optimal setting for your application.Inverter lets you set the rpm to your desired speed within the continuous range instead of just a few settings.Machined, polished worktable offers large .625" T-slots for your work-holding device.4.5" wide column minimizes flex and maintains accuracy.Heavy-duty cast iron base has a built-in coolant system to extend tooling life.Protective spindle shield with limit switch keeps you and your shop safe.Comes standard with a halogen work light to help you get the job done under dark conditions.Baileigh backs this high speed drill press with a 1-year parts warranty plus lifetime technical support.
Technical Specs Base Length
19 in
Technical Specs Base Width
27 in
Technical Specs Brands
Baileigh
Technical Specs Column Diameter
4.52 in
Technical Specs Drill Capacity
1.5 in
Technical Specs Motor Coolant
1/8 hp
Technical Specs Motor Horse Power Hp
2 hp
Technical Specs Part Number
DP-1250VS-HS
Technical Specs Power
220 V
Technical Specs Power Phase
1 pH
Technical Specs Quill Diameter
2.95 in
Technical Specs Shipping Dimensions
60 x 44 x 79 in
Technical Specs Shipping Weight
865 lb
Technical Specs Spindle Nose To Base
48.22 in
Technical Specs Spindle Nose To Table
36.41 in
Technical Specs Spindle Speed High
540 to 4000 rpm
Technical Specs Spindle Speed Low
85 to 540 rpm
Technical Specs Spindle Taper
MT 4
Technical Specs Spindle Travel
5.9 in
Technical Specs Swing
20.8 in
Technical Specs Table Slots
0.625 in
Technical Specs Tapping Capacity
3/4 in
