Baileigh MD-5015 Magnetic Drill Press
Baileigh MD-5015 Magnetic Drill Press
SKU:ELE-1736ca
Baileigh MD-5015 Magnetic Drill Press - Powerful, precise, and portable solution for fabrication and steel industries.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
Baileigh MD-5015 Magnetic Drill Press
$1,599.99
Quantity: 1
Claim Your Seller Account
Baileigh MD-5015 Magnetic Drill Press
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

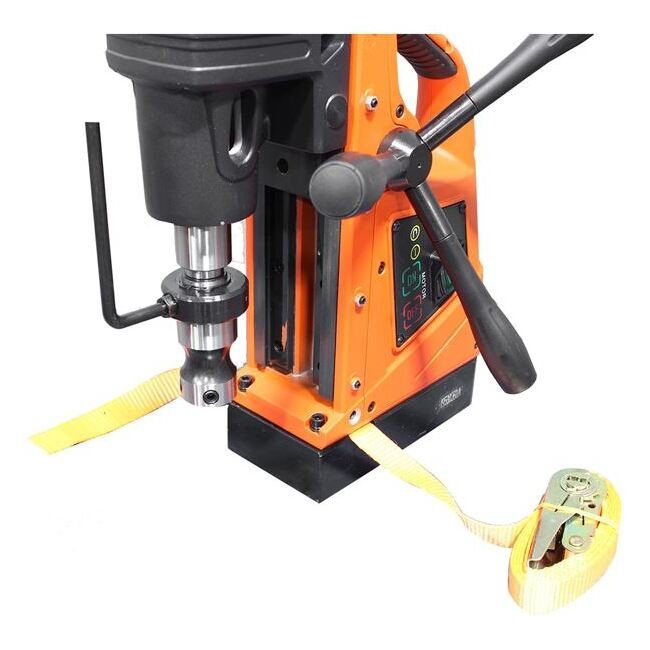

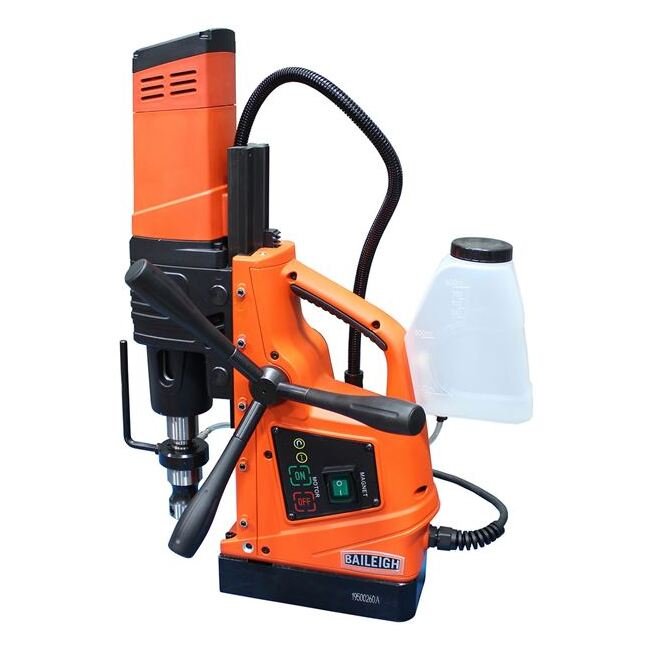

The Baileigh MD-5015 Magnetic Drill Press is a powerhouse for fabrication shops and structural steel companies. With a maximum drill capacity of 1.25 inches and a robust 15,000N industrial-grade magnet, this drill press is designed for precise and efficient drilling operations. It features a 2-speed motor with settings of 250 rpm and 450 rpm, a gravity feed coolant system for tooling lifespan improvement, and a sturdy cast steel frame for handling maximum capacity materials. This drill press comes with a 1-year parts warranty and lifetime technical support, ensuring years of trouble-free productivity. Take advantage of its portability with the heavy-duty ABS carrying case for on-the-go jobs.
Product Specifications
Additional Information Additional Information
Recommended for: Fabrication shops or structural steel companies.
Features Features

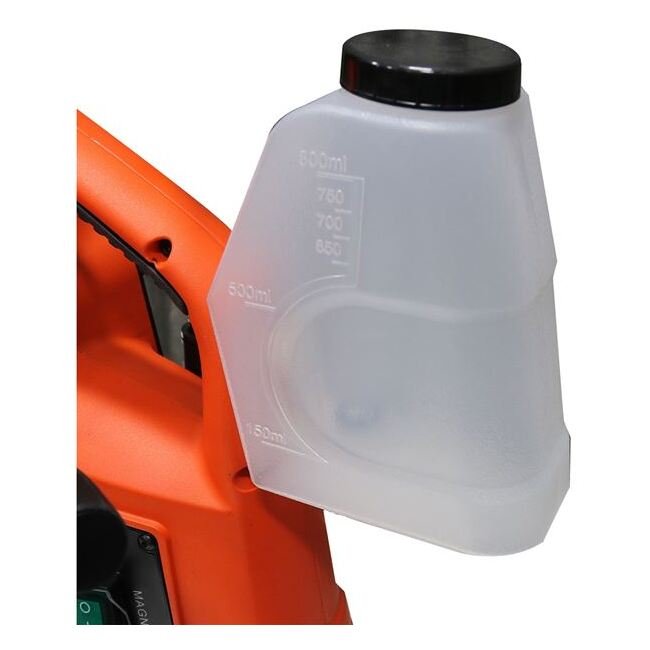

Runs on 110-volt power and will work at virtually any site or shop.Handles a maximum twist drill capacity of up to 1.25" and an annular cutting capacity of up to 2".Chose between 2 speed settings, 250 rpm on low and 450 rpm on high, to produce excellent results for most cutting applications.Industry standard .75" spindle makes it easy to find compatible tooling anywhere.Gravity feed coolant system improves tooling lifespan and makes the cuts faster and more efficient.Includes MT3 tool holder so you get start using the MD-6000 right out of the box.Sturdy cast steel frame will stand up to maximum capacity materials without flexing.You can take the drill with you to jobs in its convenient heavy duty ABS carrying case.Baileigh backs this drill with a 1-year parts warranty and lifetime technical support by phone from a team of representatives who have hands-on experience with our machines.
Technical Specs Annular Cutter Capacity
2 in
Technical Specs Base Size
8.26 x 3.93 x 1.77 in
Technical Specs Brands
Baileigh
Technical Specs Cutter Depth
3 in
Technical Specs Magnetic Adhesion
15000 N
Technical Specs Material Thickness
0.39 to 2.95 in
Technical Specs Maximum Drill Capacity
1.25 in
Technical Specs Maximum Stroke
6.69 in
Technical Specs No Load Speed
250 rpm | 450 rpm
Technical Specs Power
110 V
Technical Specs Shipping Dimensions
21 x 10 x 29 in
Technical Specs Shipping Weight
75 lb
Technical Specs Spindle Holder
3/4 in
Technical Specs Stock Number
BA9-1227409
Technical Specs Twist Drill Capacity With Optional Chuck
3/32 to 1/2 in
