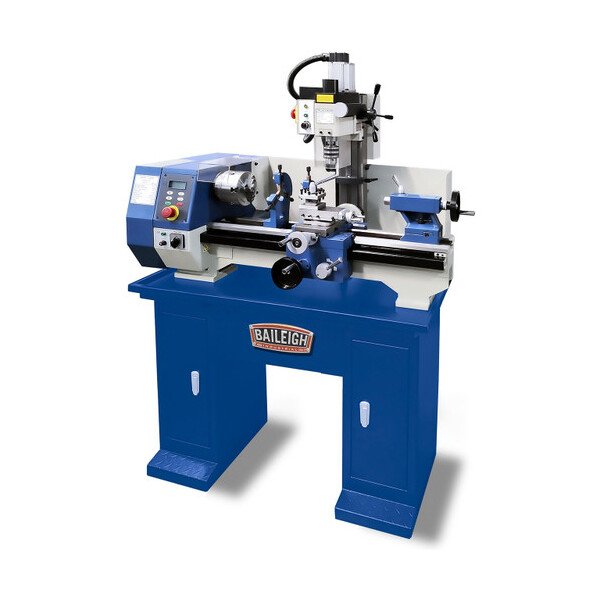

The Baileigh Precision MLD-1022 Mill/Drill/Lathe Machine is a versatile and robust solution designed for small shops and institutional settings. Featuring an MT-4 spindle taper on the lathe and MT-2 on the mill, this machine offers precise machining capabilities. With adjustable lathe speed, DRO for accuracy, and steady/follow rests for stability, it ensures high-quality results. Equipped with 2 independent 1 hp motors, a sturdy construction, and a range of useful accessories, this combination machine is built to last, backed by a 1-year parts warranty and lifetime technical support from Baileigh's experts.
Product Specifications
Features Features
Runs on 110 volts. Just plug it into a standard outlet.2 independent 1 hp motors (for the lathe and the mill) reduce wear and tear and give this combination machine a longer life.Adjustable lathe speed from 50 to 2,250 rpm with a DRO for precise cutting.Steady rest and follow rest minimize vibrations for more accurate results.Comes with 3-jaw and 4-jaw chucks to hold both square and rounded materials.Built with robust MT-4 spindle taper on lathe & MT-2 on mill.Yoke on stationary mill allows you to drill as on a traditional drill press.Includes sheet metal stand, but you can also use this mill drill lathe on your benchtop.Precision-ground and hardened ways ensure long life and years of high-quality machining.Combo lathe mill drill covered by a 1-year parts warranty.You can count on lifetime technical support by phone from Baileigh's team of metalworking experts.
Technical Specs Brands
Baileigh
Technical Specs Distance Between Centers
22 in
Technical Specs Height
55 in
Technical Specs Length
69 in
Technical Specs Maximum Distance Spindle To Column
6.5 in
Technical Specs Maximum Distance Spindle To Table
8.375 in
Technical Specs Part Number
MLD-1022
Technical Specs Power Voltage
120 V
Technical Specs Quill Travel
2 in
Technical Specs Range Of Longitudinal Feed Per Revolution
0.003 to 0.008 in
Technical Specs Range Of Metric Threads
0.4 to 3.5 mm
Technical Specs Range Of Threads
8 to 56 tpi
Technical Specs Shipping Weight
450 lb
Technical Specs Spindle Bore
1.1 in
Technical Specs Spindle Motor Power
1 hp
Technical Specs Spindle Speeds
50 to 2250 rpm
Technical Specs Spindle Stroke
2 in
Technical Specs Spindle Taper
MT 4
Technical Specs Swing
9.75 in
Technical Specs Swing Over Cross Slide
5.7 in
Technical Specs Taper Of Spindle Bore
MT 4
Technical Specs Taper Of Tailstock Quill
MT 2
Technical Specs Top Slide Travel
2 in
Technical Specs Width
44 in
Technical Specs Width Of Bed
5.3 in
Technical Specs Working Table Cross Travel
4.5 in
