Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

MIL-2508e5

Enhance efficiency with the Baileigh VMD-15 Mill Drill for precise milling and drilling operations.

$3,699.99
$3,699.99
Sale

Initiate Order

Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

$3,699.99

Quantity: 1

Claim Your Seller Account

Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

Baileigh VMD-15 15 Inch Mill Drill with R-8 Taper

$3,699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

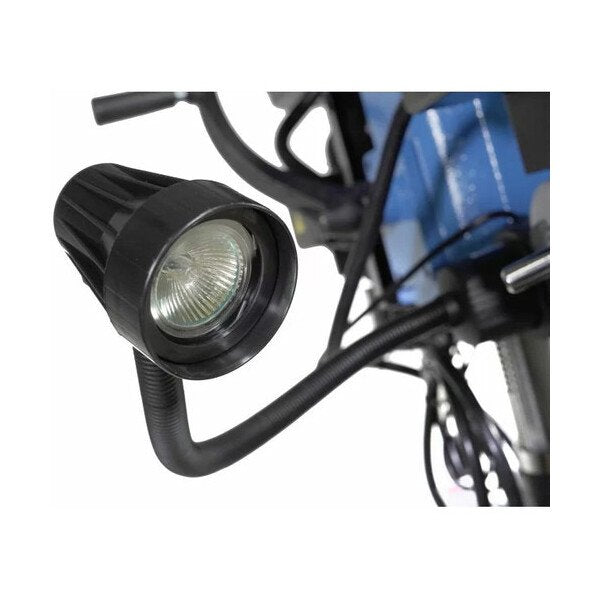

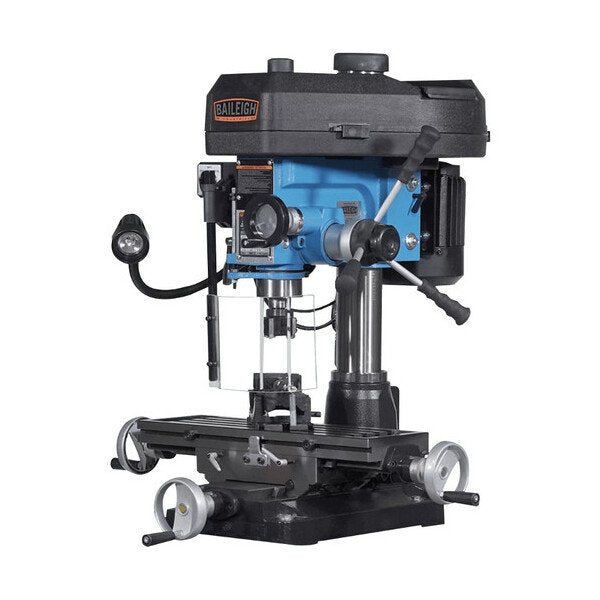

The Baileigh VMD-15 Mill Drill offers a versatile solution for light-duty milling and drilling operations. With a powerful 1 hp motor and a 12-speed range from 110 to 2580 rpm, this machine provides precision and efficiency. Its belt-drive system enables quick speed adjustments, while the articulated LED lamp and angle vise enhance workpiece visibility and stability. Ideal for maintenance departments, machine shops, and more, the VMD-15 combines drilling and milling capabilities in a compact design, meeting various operational needs with ease.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features Features

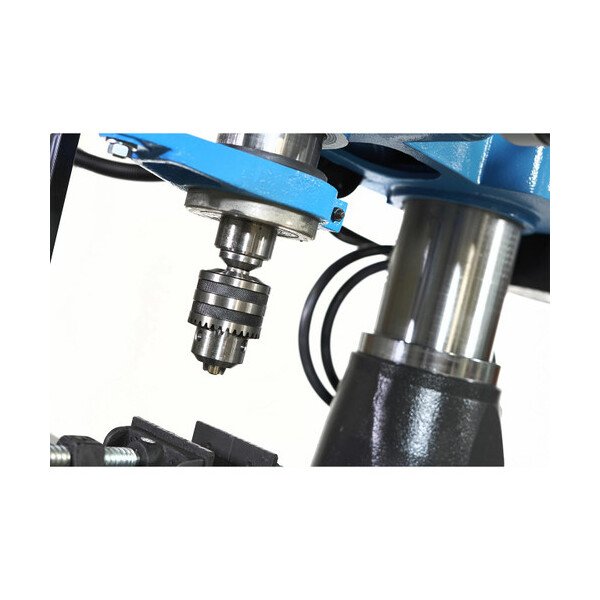

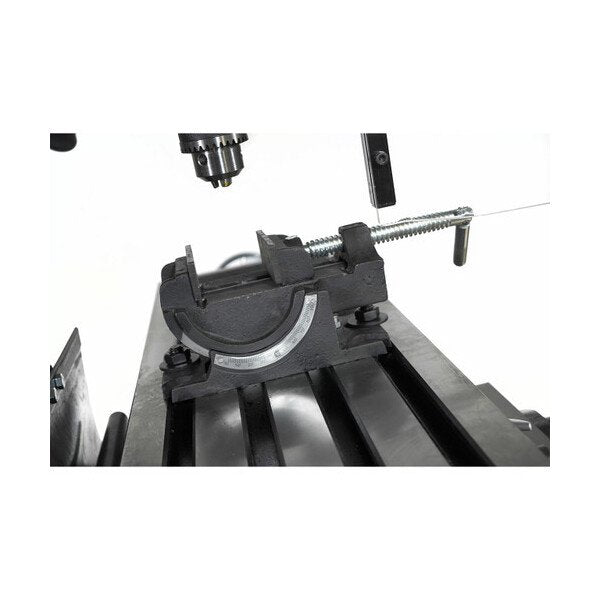

Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materialsBelt cover with quick slide latch allows faster belt adjustment to change spindle speedsDrill press style angle vise locks material in placeDrill chuck & arbor allow easy changes from drilling to milling360° head swivel allows milling or drilling of oversized materialArticulated LED lamp illuminates your workpieceSingle piece, the cast iron column provides stable support for precise milling or drilling reducing deflectionEasy-to-read external depth gauge for accurate milling & drilling
Technical Specs Base Length
19-3/4 in
Technical Specs Base Width
12-1/2 in
Technical Specs Brands
Baileigh
Technical Specs Column Diameter
3-5/8 in
Technical Specs Drilling Capacity
1.5 in
Technical Specs Length
12-1/2 in
Technical Specs Maximum Distance Spindle To Table
14-1/2 in
Technical Specs Maximum Distance To Table
14-1/2 in
Technical Specs Number Of Spindle Speeds
12 speeds - 110 to 2580 rpm
Technical Specs Part Number
VMD-15
Technical Specs Quill Diameter
2-7/16 in
Technical Specs Speed Range
110 to 2580 rpm
Technical Specs Spindle Motor Power
1 hp
Technical Specs Spindle Speeds
110 to 2580 rpm
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
4.75 in
Technical Specs Stock Number
BA9-1231787
Technical Specs Swing
14-1/2 in
Technical Specs Table Length
23 in
Technical Specs Table Width
7-1/2 in
Technical Specs T Slots Centers
4 in | 9/16 in
Technical Specs Width
19-3/4 in
Technical Specs Work Table Weight Capacity
350 lb
