Baileigh VMD-30VS Vertical Mill Drill Press
Baileigh VMD-30VS Vertical Mill Drill Press
SKU:DRI-bfb64e
Versatile Baileigh VMD-30VS Vertical Mill Drill Press with 1.125" drilling capacity, variable spindle speeds, and sturdy construction for precision drilling and milling operations.
Regular price
$6,699.99
Regular price
Sale price
$6,699.99
Unit price
per
Initiate Order
Baileigh VMD-30VS Vertical Mill Drill Press
$6,699.99
Quantity: 1
Claim Your Seller Account
Baileigh VMD-30VS Vertical Mill Drill Press
$6,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

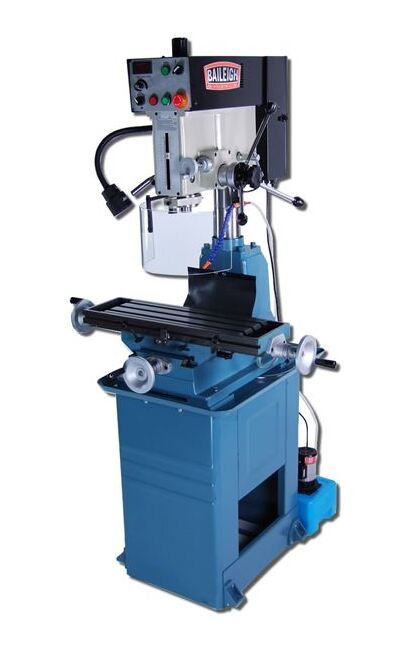

The Baileigh VMD-30VS Vertical Mill Drill Press combines precision drilling and milling capabilities in one compact machine. With a spacious 28.75 x 8.25 inch table and a 1.125 inch drilling capacity, this versatile tool offers variable spindle speeds from 150 to 2500 rpm, ensuring optimal performance for a wide range of materials. Its sturdy construction, including an R8 spindle taper and a robust cast iron base, minimizes vibrations for enhanced accuracy. The machine runs on 220V single-phase power, features an adjustable tooling speed for prolonged lifespan, and includes a flood coolant system to prevent overheating. Backed by a 1-year warranty and unlimited technical support, the Baileigh VMD-30VS is a reliable investment for your workshop.
Product Specifications
Features Features
Runs on 220 volt single-phase power to accommodate virtually any site in North America.1.125â maximum drilling capacity.Large 29â x 8â milling table engineered to support the extra load.Variable-speed Delta® inverter lets you select any speed from 0 to 2500 rpm.Infinitely adjustable tooling speed prolongs tooling lifespans and saves money.Short, sturdy column and full cast iron base reduce vibrations, increase accuracy, and wonât buckle under maximum capacity stresses.Drill base stores a flood coolant system to prevent overheating and to increase tooling life further.You can count on Baileigh for a 1-year warranty and unlimited technical support by phone throughout the machineâs potential decades of use.
Technical Specs Brands
Baileigh
Technical Specs Coolant Pump Motor
1/8 hp
Technical Specs Country Of Manufacture
Taiwan
Technical Specs Distance From Spindle Nose To Table
19.7 in
Technical Specs Drill Capacity
1.125 in
Technical Specs Motor Voltage
220 V
Technical Specs Number Of Phase
1
Technical Specs Range Of Spindle Speeds Revolution Per Minute Rp
150 to 2500 rpm
Technical Specs Shipping Dimensions
36 x 30 x 47 in
Technical Specs Shipping Weight
616 lb
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
5.9 in
Technical Specs Table Size
28.75 x 8.25 in
Technical Specs Tapping Capacity
0.625 in
Technical Specs T Slot
0.625 in
Technical Specs X Axis Travel
14.7
Technical Specs Y Axis Travel
6.67
