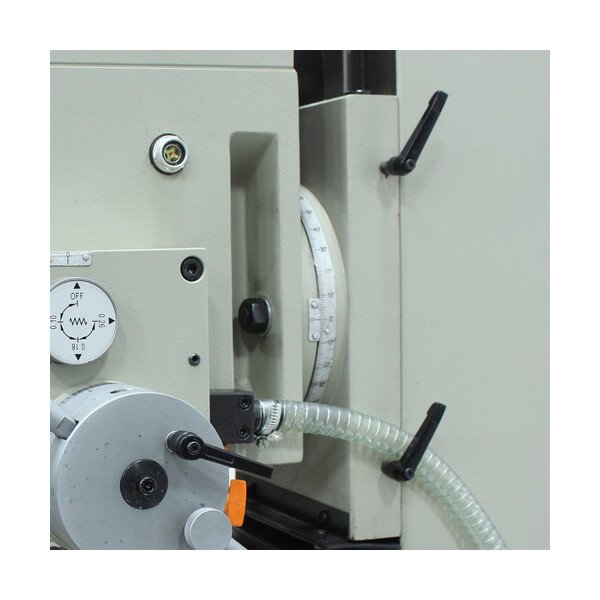

  • Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table - Image 5
1 5
Penn Tool Co. →

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

MIL-d8456b

Powerful Baileigh VMD-931G Mill/Drill for precise drilling, milling, and tapping tasks. 2 hp motor, 6 speeds, and X-axis power feed ensure accuracy.

$6,299.00
$6,299.00
Sale

Initiate Order

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

$6,299.00

Quantity: 1

Claim Your Seller Account

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

Baileigh VMD-931G Vertical Mill/Drill, 31.5 x 9.45 Inch Table

$6,299.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Baileigh VMD-931G Vertical Mill/Drill is a versatile machine ideal for multitasking in a workshop or educational institution. With a powerful 2 hp motor, 6 spindle speeds, and a durable steel column, it offers precision drilling, milling, and tapping capabilities. The 31.5 x 9.45 inch table with X-axis power feed ensures accuracy in longer cuts. Featuring an R8 spindle taper, coolant system, and halogen light, this machine is backed by a 1-year warranty and lifetime technical support from Baileigh.

Product Specifications

Features Features
2 hp motor runs on 110 volt single-phase power, optimal for any shop, garage, or educational institution.1.75" maximum drilling capacity.31.5" x 9.45" milling-style table enables you to tackle a wider variety of projects (with the right tooling).Table incorporates an X-axis power feed to make those longer cuts accurately.Gear-driven head swivels 90° left and right.You can choose from 6 speeds to accommodate each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.Wide steel column eliminates flex when you’re milling or drilling at full capacity.Heavy-duty base, made from a rigid iron casting, adds to the machine’s strength and minimizes vibrations.Comes standard with a coolant system, R8 spindle taper, and a flexible halogen light.This drill press mill is covered by a 1-year warranty and lifetime technical support by phone from Baileigh's team of knowledgeable reps.
Note Note
Recommended for: Milling, drilling, tapping, and boring.
Technical Specs Brands
Baileigh
Technical Specs Coolant Pump
1/8 hp
Technical Specs Distance From Spindle Nose To Table
17.32 in
Technical Specs Drill Capacity
1.5 in
Technical Specs End Mill Size Maximum
1.25 in
Technical Specs Head Miter
17243
Technical Specs Part Number
VMD-931G
Technical Specs Power
110 W
Technical Specs Shipping Height
50 in
Technical Specs Shipping Length
40 in
Technical Specs Shipping Weight
1200 lb
Technical Specs Shipping Width
44 in
Technical Specs Spindle Motor Power
2 hp
Technical Specs Spindle Speeds
1180 rpm | 1970 rpm | 210 rpm | 345 rpm | 670 rpm | 90 rpm
Technical Specs Spindle Stroke
4.75 in
Technical Specs Spindle Taper
R8
Technical Specs Spindle Travel
4.75 in
Technical Specs Stock Number
BA9-1020693
Technical Specs Table Size
31.5 x 9.45 in
Technical Specs T Slots
0.55 in
Technical Specs Work Table Weight Capacity
350 lb
Technical Specs X Axis Travel
22 in
Technical Specs Y Axis Travel
7.48 in
