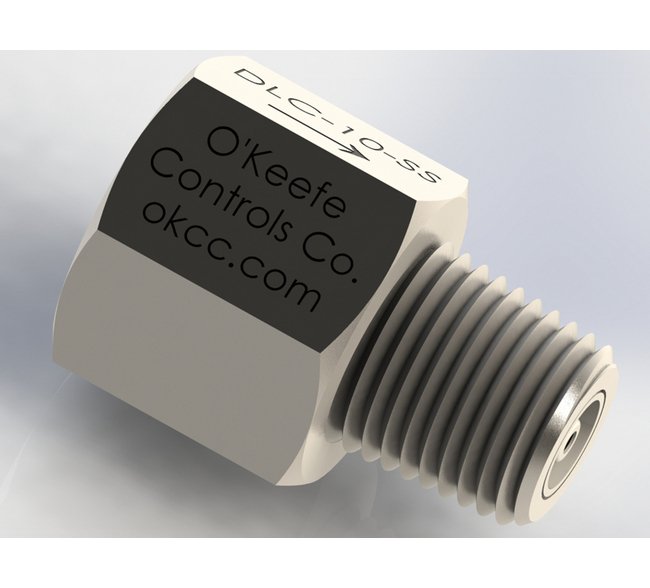

Ball Type Check Valve - NPT Connection, Brass & Stainless Steel
Ball Type Check Valve - NPT Connection, Brass & Stainless Steel
SKU:CHE-7ff3fb
Enhance fluid control with our reliable Ball Type Check Valve for liquids or gases. Prevents reverse flow, durable construction, and high-pressure capability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ball Type Check Valve - NPT Connection, Brass & Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Ball Type Check Valve - NPT Connection, Brass & Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control with our Ball Type Check Valve featuring 303 SS material, 304 SS ball, 0.081 CV, and max temp of 300°F. Designed for long-term reliability in preventing reverse flow, with high pressure capability and minimal seat leakage. Suitable for liquid or gas applications, this valve offers 1/8" NPT Female to Male connection, ensuring efficient flow control and durability. Trust this valve for consistent performance and metal to metal construction for secure sealing. See General Specifications for detailed information.
Product Specifications
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
