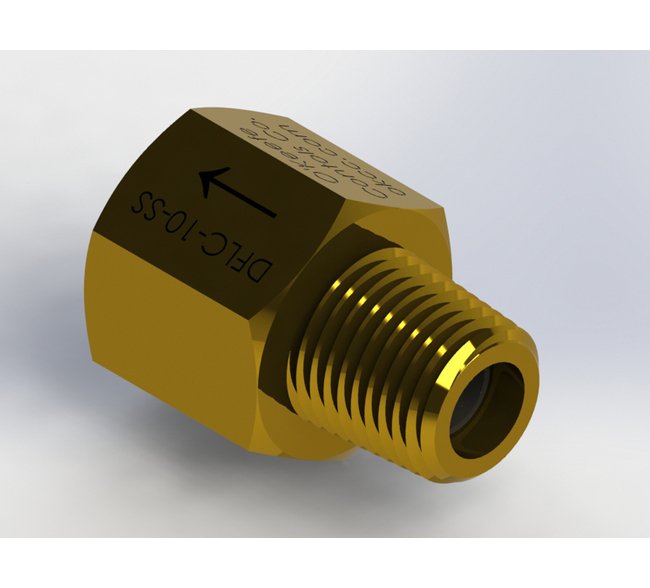

Ball Type Check Valves - Brass/Stainless Steel, NPT Connection
Ball Type Check Valves - Brass/Stainless Steel, NPT Connection
SKU:CHE-da5f44
Enhance fluid control with durable Ball Type Check Valves in brass/stainless steel for reliable one-way flow, high pressure capability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ball Type Check Valves - Brass/Stainless Steel, NPT Connection
$49.99
Quantity: 1
Claim Your Seller Account
Ball Type Check Valves - Brass/Stainless Steel, NPT Connection
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

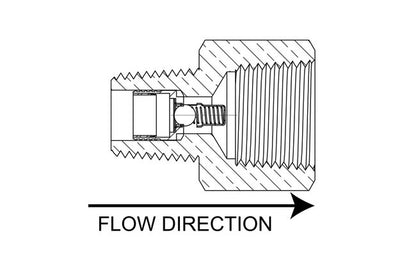

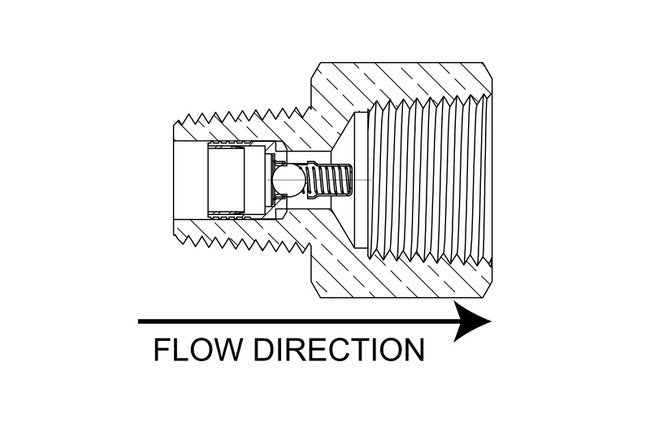

Upgrade your fluid control system with our Ball Type Check Valves. Available in brass and stainless steel, these valves offer reliable free flow in one direction, preventing reverse flow. With all-metal construction and a choice of cracking pressure, they ensure long-lasting, high-pressure performance. Ideal for liquids or gases, these valves meet stringent quality standards for institutional procurement.
Product Specifications
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
2 psig
Specifications Cv
0.081
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
