Ball Type Check Valves - NPT Connection, Brass/Stainless Steel, 1/4" NPT Female/Male

Name: Ball Type Check Valves - NPT Connection, Brass/Stainless Steel, 1/4" NPT Female/Male
Brand: O'Keefe Controls Co.
SKU: CHE-f004f5
Price: 34.99 USD
Availability: OutOfStock

SKU:CHE-f004f5

Reliable Ball Type Check Valves for precise fluid/gas control in industrial applications.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

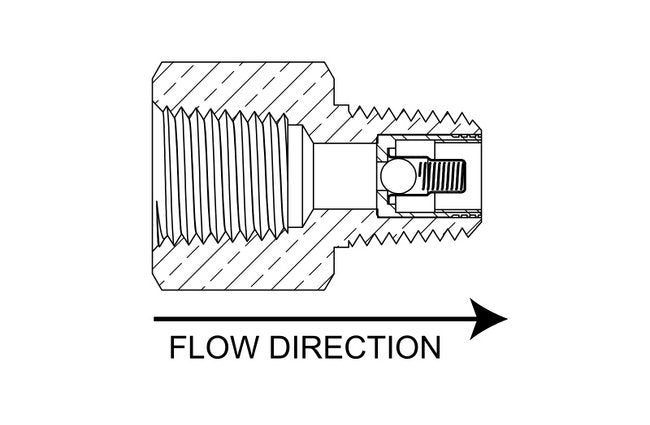

Enhance your fluid or gas systems with our Ball Type Check Valves. Available in brass or stainless steel, these valves ensure unidirectional flow, preventing reverse flow. With metal-to-metal construction and minimal leakage, they offer durability and reliability. Operating at up to 200 psig and 300 °F, these valves provide high-pressure capability and long-lasting performance. Ideal for industrial applications requiring precision control.

Product Specifications

Dimensions Total Length

1.25 in

Dimensions Width Across Flats Hex

3/4 in

Features Features

All metal construction Long life operation Choice of cracking pressure High pressure capability

Flow Data Air Flow At 100 Psig

781 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 gpm

Specifications Ball Material

304 SS

Specifications Connection A

1/4" NPT Female

Specifications Connection B

1/4" NPT Male

Specifications Cracking Pressure

2 psig

Specifications Cv

0.190

Specifications Material

303 SS

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Maximum Temperature

300 ÂºF

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential

Ball Type Check Valves - NPT Connection, Brass/Stainless Steel, 1/4" NPT Female/Male
