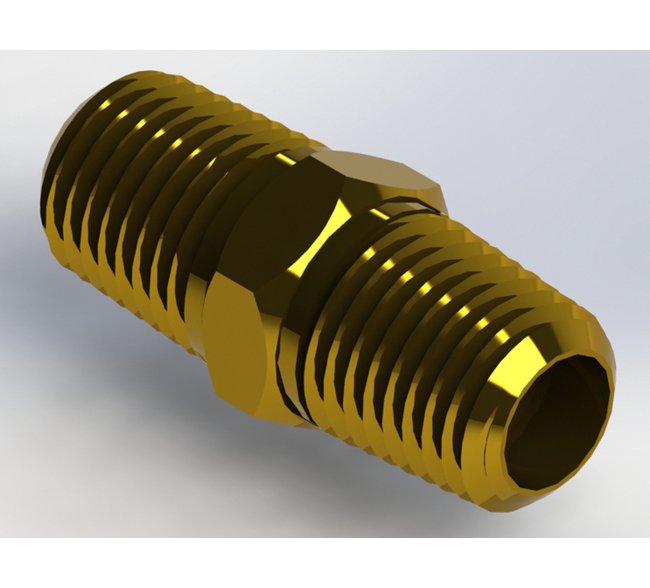

Ball Type Check Valves - NPT Connection, Brass & Stainless Steel
Ball Type Check Valves - NPT Connection, Brass & Stainless Steel
SKU:CHE-31ca67
Reliable Ball Type Check Valves for controlled one-way flow, ideal for liquids or gases in institutional setups.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Ball Type Check Valves - NPT Connection, Brass & Stainless Steel
$45.99
Quantity: 1
Claim Your Seller Account
Ball Type Check Valves - NPT Connection, Brass & Stainless Steel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

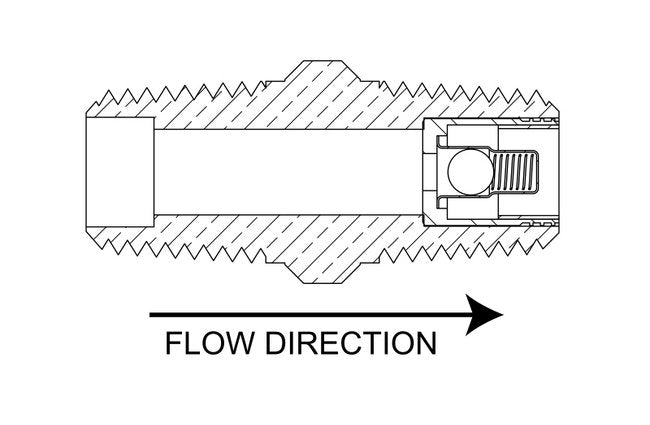

The Ball Type Check Valves with NPT connection offer reliable one-way flow control for liquids or gases. Available in brass and stainless steel, these valves feature metal-to-metal construction, ensuring durability and minimal seat leakage. With a maximum temperature of 300°F and a high operating pressure of 2000 psig, these valves are suitable for a range of applications. The choice of cracking pressure and high-pressure capability make them ideal for institutional and government procurement needs.
Product Specifications
Dimensions Total Length
1.38 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
781 ft³/h
Flow Data Water Flow At 100 Psig
1.9 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Ball Material
304 SS
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
