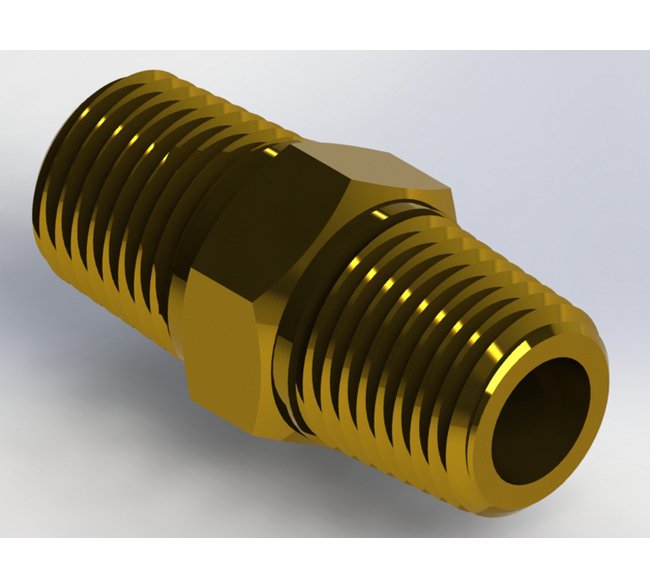

Ball Type Check Valves with NPT Connections

Name: Ball Type Check Valves with NPT Connections
Brand: O'Keefe Controls Co.
SKU: CHE-6c1991
Price: 49.99 USD
Availability: OutOfStock

SKU:CHE-6c1991

Reliable Ball Type Check Valves with brass construction, 304 SS ball, and max pressure 2000 psig. Ideal for fluids & gases up to 300°F.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

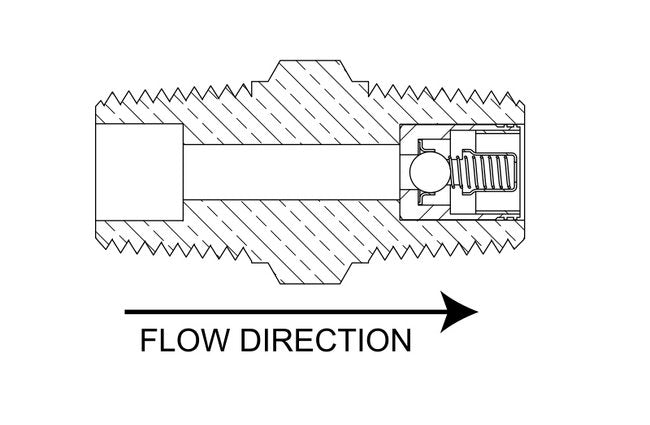

Enhance fluid control with our Ball Type Check Valves featuring brass construction, 304 SS ball, and a maximum operating pressure of 2000 psig. Designed for one-way flow, these valves offer reliability, high pressure capability, and minimal seat leakage. With a cracking pressure of 0 psig, these valves ensure optimal performance with liquids or gases, up to 300°F. Explore precision engineering for long-lasting performance in industrial applications.

Product Specifications

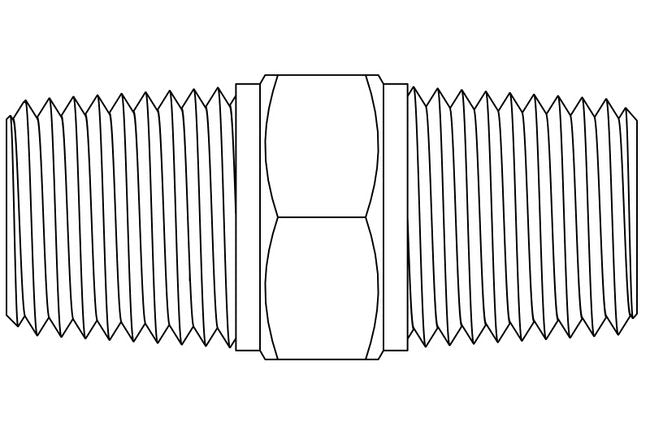

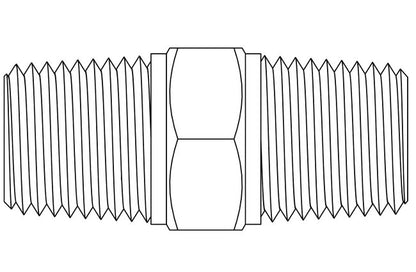

Dimensions Total Length

0.970 in

Dimensions Width Across Flats Hex

7/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure High pressure capability

Flow Data Air Flow At 100 Psig

331 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 gpm

Specifications Additional Wetted Material

Loctite 609 / 680

Specifications Ball Material

304 SS

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

0 psig

Specifications Cv

0.081

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

2000 psig

Specifications Maximum Temperature

300 ÂºF

Specifications Seat Leakage

20 SSCM (max.) air flow at 25 psi differential
