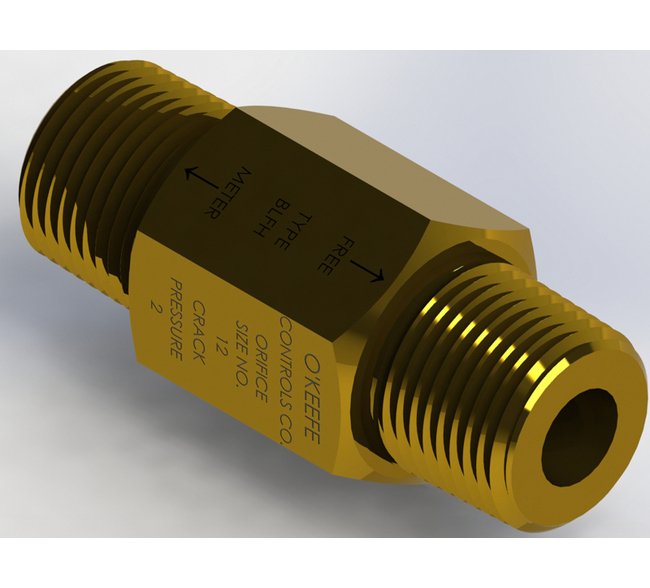

Ball Type Fixed Flow Control NPT Nipple
Ball Type Fixed Flow Control NPT Nipple
SKU:FLO-03af9c
Optimized fixed flow control for precise fluid or gas metering. Durable all-metal construction with tamper-proof design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ball Type Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Claim Your Seller Account
Ball Type Fixed Flow Control NPT Nipple
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ball Type Fixed Flow Control NPT Nipple is a meticulously engineered solution featuring an all-metal construction for exceptional durability. It combines a ball check valve and precision orifice, ensuring unrestricted flow in one direction and controlled flow in the other. Crafted from brass with a 304 SS ball, this product offers a tamper-proof design, high pressure capacity, and a choice of cracking pressures. With compliance to industry standards, this fixed flow control is ideal for applications requiring precise fluid or gas metering.
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.084
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
29.93
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
11
Specifications Orifice Cv Return
0.0028
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
