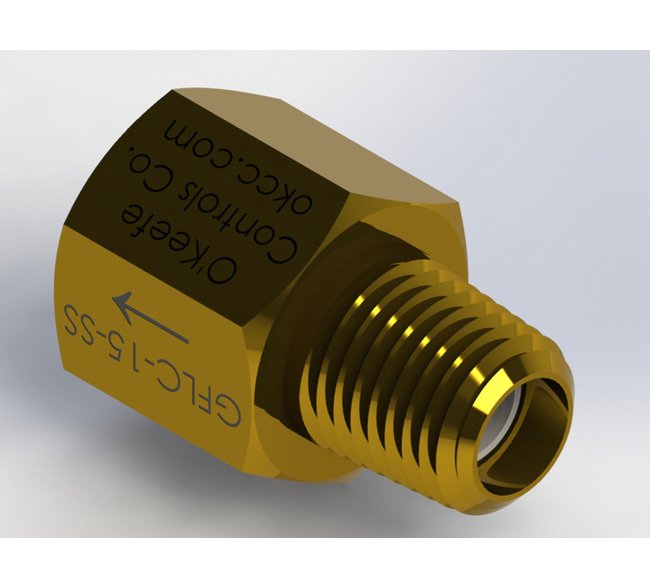

Ball Type NPT Check Valves - Brass & Stainless Steel
Ball Type NPT Check Valves - Brass & Stainless Steel
SKU:CHE-d0bc6a
Reliable Ball Type NPT Check Valves in brass & stainless steel. Unidirectional flow, durable metal construction, low seat leakage, suitable for high pressures.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Ball Type NPT Check Valves - Brass & Stainless Steel
$32.99
Quantity: 1
Claim Your Seller Account
Ball Type NPT Check Valves - Brass & Stainless Steel
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

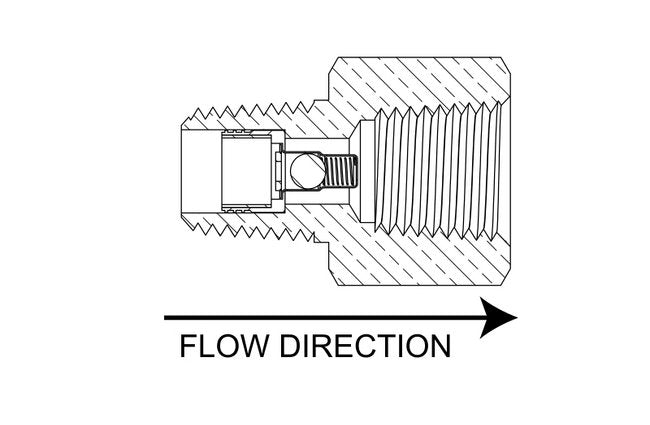

Our Ball Type NPT Check Valves are available in brass and stainless steel, catering to various applications with liquids or gases. Designed for unidirectional flow, preventing reverse flow. Features include metal-to-metal construction for durability, low seat leakage, and a choice of cracking pressure. Suitable for high-pressure operations with a maximum temperature of 300°F. Ideal for government and institutional procurement needs.
Product Specifications

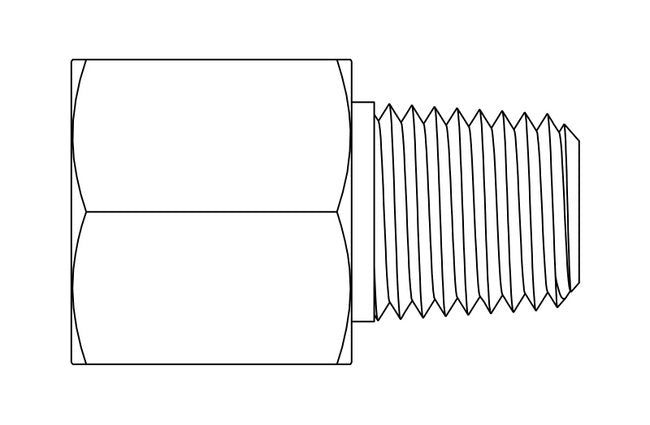

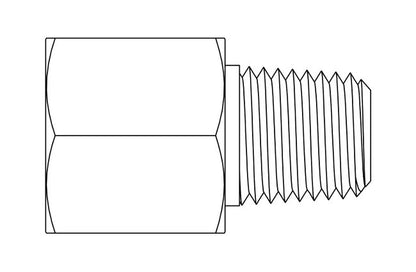

Dimensions Total Length
1.25 in
Dimensions Width Across Flats Hex
3/4 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
781 ft³/h
Flow Data Water Flow At 100 Psig
1.9 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/4" NPT Male
Specifications Connection B
1/4" NPT Female
Specifications Cracking Pressure
15 psig
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
