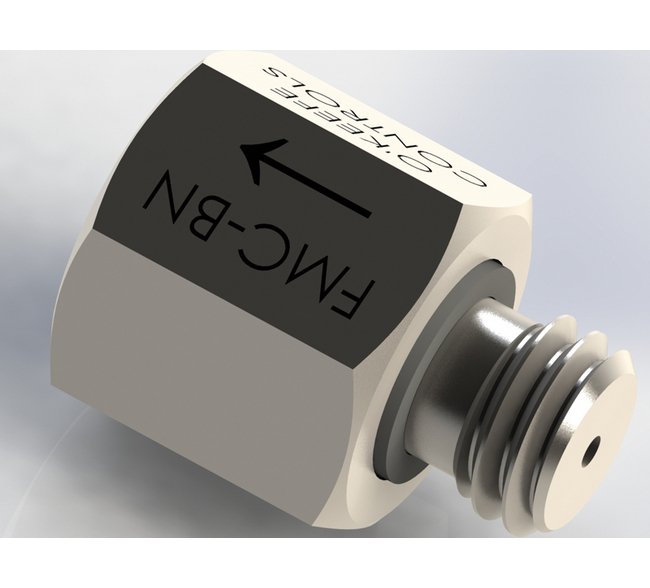

Ball Type NPT Check Valves - Stainless Steel, 10-32 UNF Connection
Ball Type NPT Check Valves - Stainless Steel, 10-32 UNF Connection
SKU:CHE-66c56f
Reliable stainless steel Ball Type NPT Check Valves for secure one-way flow, ideal for institutional use.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ball Type NPT Check Valves - Stainless Steel, 10-32 UNF Connection
$24.99
Quantity: 1
Claim Your Seller Account
Ball Type NPT Check Valves - Stainless Steel, 10-32 UNF Connection
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience reliable performance with our Ball Type NPT Check Valves featuring stainless steel construction and Viton seals for liquid and gas applications. These valves ensure one-way flow, preventing reverse flow effectively. With precise dimensions and a Cracking Pressure of 125 psig, these valves offer durability and resilience under pressure. Enjoy secure connections with 10-32 UNF Male and Female fittings, making installation a breeze. Ideal for institutional and government applications requiring high-quality check valves.
Product Specifications
Dimensions Orifice Diameter
0.031 in
Dimensions Total Length
0.485 in
Dimensions Width Across Flats Hex
5/16 in
Features Features
All metal construction option Long life operation Low cost
Flow Data Air Flow At 100 Psig
40 L/min
Flow Data Air Flow At 25 Psig
20 cm³/min
Specifications Ball Material
SS
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Cv
0.02
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
31
Specifications Seal Material
Viton
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
