Ball Type NPT Nipple Fixed Flow Control Valve

Name: Ball Type NPT Nipple Fixed Flow Control Valve
Brand: O'Keefe Controls Co.
SKU: FLO-98dbb5
Price: 59.99 USD
Availability: OutOfStock

SKU:FLO-98dbb5

Precision-engineered Ball Type NPT Nipple valve for reliable liquid and gas flow control in industrial settings.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

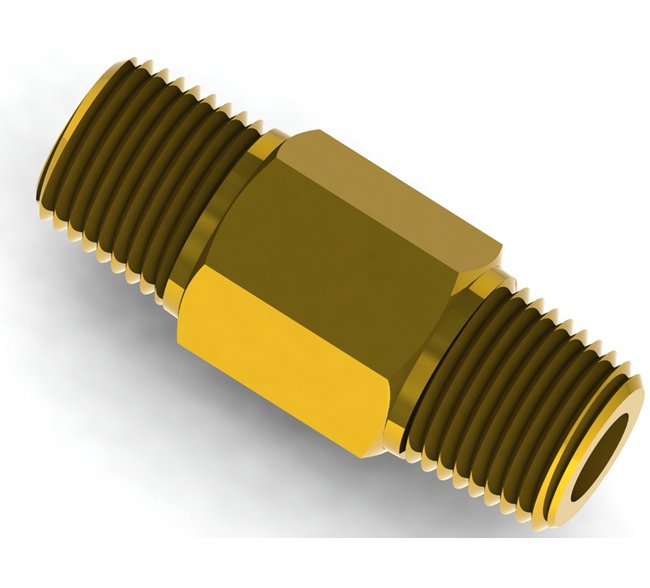

The Ball Type NPT Nipple Fixed Flow Control Valve is a precision-engineered solution for regulating liquid and gas flow. Constructed with high-quality Brass and 304 SS materials, it features a tamper-proof orifice and a choice of cracking pressure. With a maximum operating pressure of 2000 psig, this valve offers long-lasting performance suitable for a wide range of industrial applications. Experience exceptional reliability and high-pressure capacity with this all-metal construction valve.

Product Specifications

Dimensions Orifice Diameter

0.063 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Additional Wetted Material

Loctite 609 / 680

Specifications Assembly Forward Cv

0.279

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

15 psig

Specifications Cv Ratio Forward Cv Return Cv

3.17

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

2000 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.088

Specifications Screened

None

Specifications Seal Material

Loctite 609, 680

Ball Type NPT Nipple Fixed Flow Control Valve
