Ball Type NPT Nipple Fixed Flow Control Valve
Ball Type NPT Nipple Fixed Flow Control Valve
SKU:FLO-34b7fb
Precision flow control valve for liquids and gases, brass construction, stainless steel ball, tamperproof design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Ball Type NPT Nipple Fixed Flow Control Valve
$34.99
Quantity: 1
Claim Your Seller Account
Ball Type NPT Nipple Fixed Flow Control Valve
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

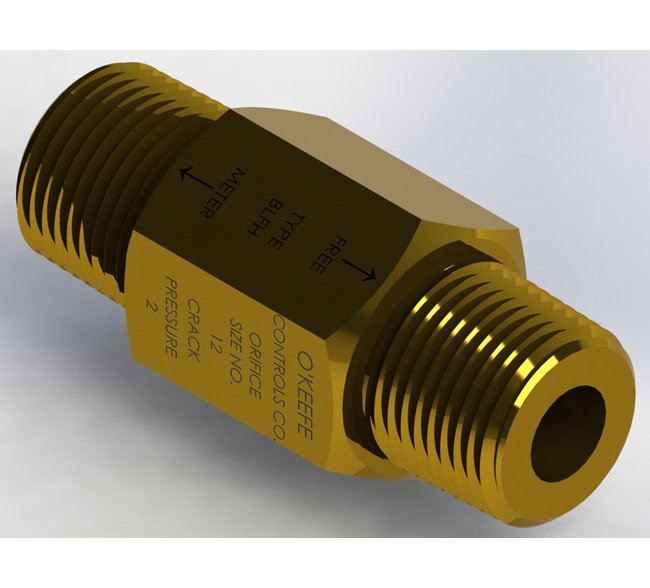

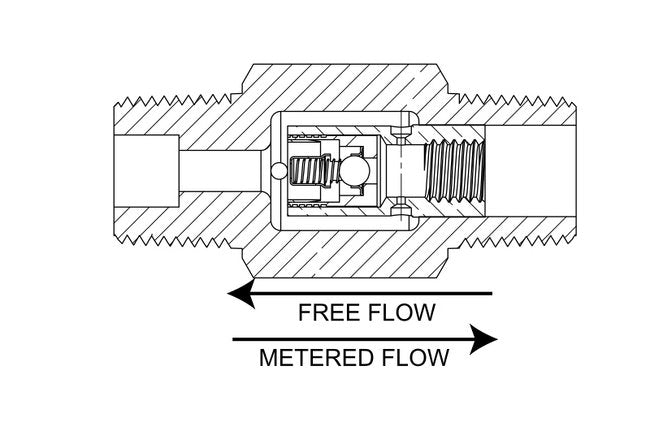

The Ball Type NPT Nipple Fixed Flow Control Valve features a precision orifice and a ball check valve for controlled fluid and gas flow. With a durable brass construction and stainless steel ball, this valve ensures long-lasting performance. It offers a choice of cracking pressure, tamperproof orifice, high pressure capacity, and reliable operation. Ideal for both liquids and gases, this valve meets stringent institutional procurement standards.
Product Specifications
Dimensions Orifice Diameter
0.055 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.149
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
2.19
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
55
Specifications Orifice Cv Return
0.068
Specifications Screened
None
