Ball Type NPT Nipple Flow Control Valve
Ball Type NPT Nipple Flow Control Valve
SKU:FLO-c6deee
Precision flow control valve for liquids and gases with durable 303 SS construction and tamperproof orifice.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ball Type NPT Nipple Flow Control Valve
$49.99
Quantity: 1
Claim Your Seller Account
Ball Type NPT Nipple Flow Control Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

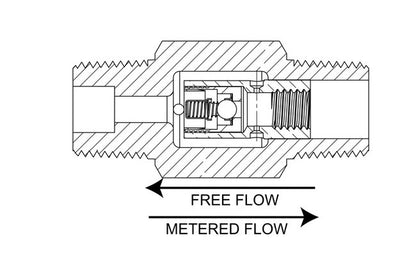

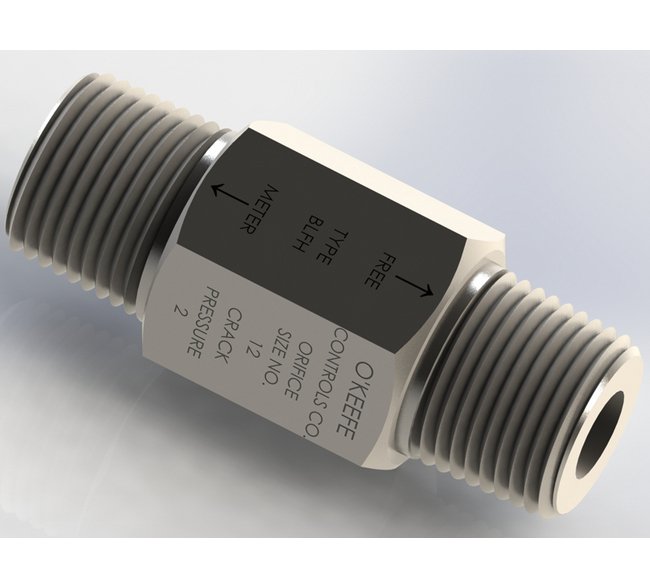

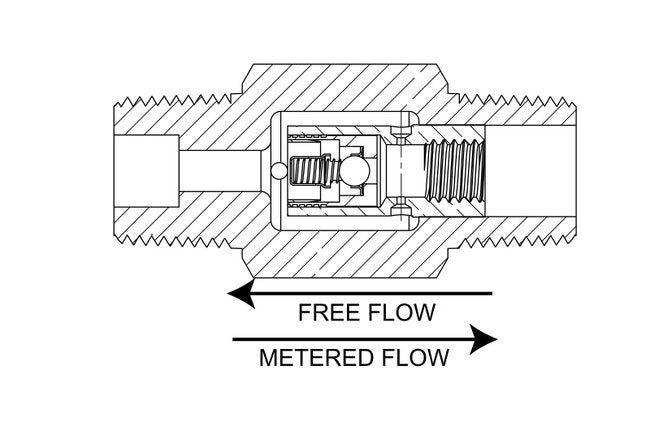

The Ball Type NPT Nipple Flow Control Valve is a reliable solution for precise fluid and gas flow regulation. Crafted with durable 303 SS material, it features a tamperproof orifice and high-pressure capacity. With a cracking pressure of 2 psig and all-metal construction, this valve ensures long-lasting, efficient operation, making it ideal for various applications. Suitable for both liquids and gases, it offers metered flow in one direction and free flow in the other, providing versatility and performance.
Product Specifications
Dimensions Orifice Diameter
0.043 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.122
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
2 psig
Specifications Cv Ratio Forward Cv Return Cv
2.98
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
43
Specifications Orifice Cv Return
0.041
Specifications Screened
None
