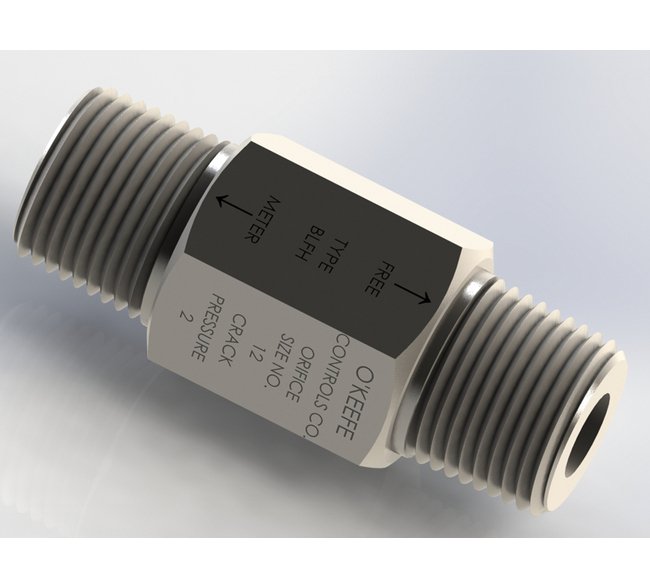

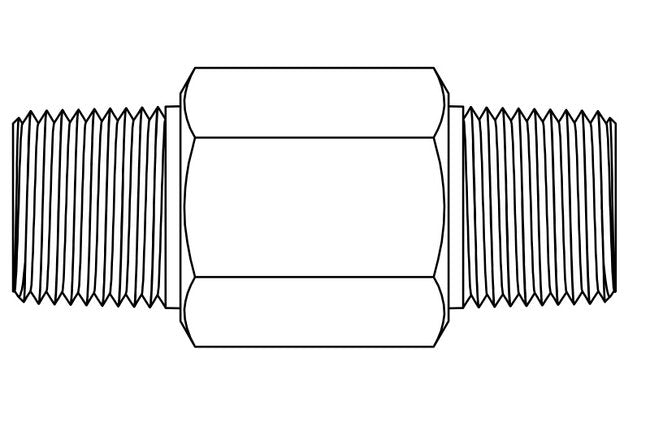

Ball Type NPT Nipple Flow Control Valve

Name: Ball Type NPT Nipple Flow Control Valve
Brand: O'Keefe Controls Co.
SKU: FLO-55eebb
Price: 49.99 USD
Availability: OutOfStock

SKU:FLO-55eebb

Ensure precise flow regulation with the Ball Type NPT Nipple Flow Control Valve, featuring all-metal construction and high pressure capacity.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

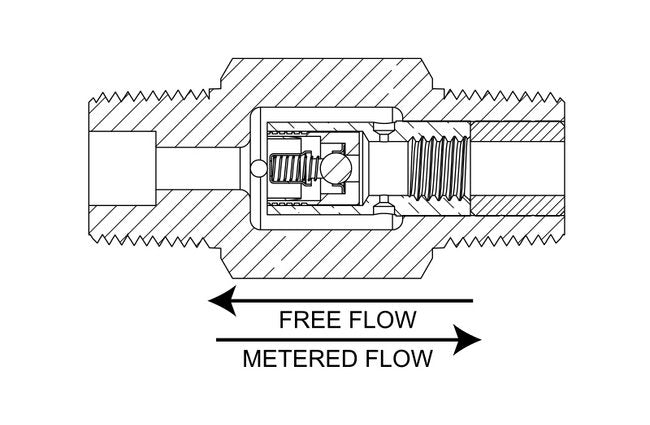

The Ball Type NPT Nipple Flow Control Valve offers precise flow regulation with a parallel ball check valve and orifice. Designed for liquids and gases, this valve features all-metal construction, high pressure capacity, tamperproof orifice, and a choice of cracking pressures. With dimensions including an orifice diameter of 0.011 in and maximum operating pressure of 2000 psig, this valve ensures reliable performance and long-lasting durability, making it ideal for various industrial applications.

Product Specifications

Dimensions Orifice Diameter

0.011 in

Dimensions Total Length

1.4 in

Dimensions Width Across Flats Hex

9/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

346 to 662 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 to 1.6 gpm

Specifications Additional Wetted Material

Loctite 609 / 680

Specifications Assembly Forward Cv

0.084

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.081

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

2 psig

Specifications Cv Ratio Forward Cv Return Cv

29.93

Specifications Material

303 SS

Specifications Maximum Operating Pressure Gauge

2000 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.0028

Specifications Screened

None

Specifications Seal Material

Loctite 609, 680

Ball Type NPT Nipple Flow Control Valve
