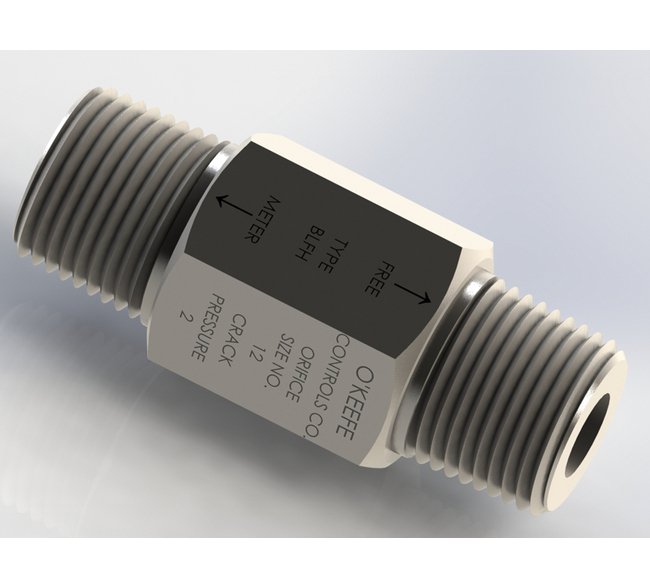

Ball Type NPT Nipple Flow Control Valve
Ball Type NPT Nipple Flow Control Valve
SKU:FLO-30add5
Precision-engineered Ball Type NPT Nipple Flow Control Valve for reliable fluid and gas control
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Ball Type NPT Nipple Flow Control Valve
$89.99
Quantity: 1
Claim Your Seller Account
Ball Type NPT Nipple Flow Control Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your fluid and gas control systems with our Ball Type NPT Nipple Flow Control Valve. This precision-engineered valve features a parallel arrangement of a ball check valve and a high-precision orifice, ensuring reliable metered flow in one direction and free flow in the opposite direction. Built with durable 303 SS and 304 SS materials, this valve offers a wide range of features including a tamperproof orifice, high pressure capacity, and a choice of cracking pressure. With a maximum operating pressure of 2000 psig, it provides long-lasting performance for various applications in both liquid and gas environments.
Product Specifications
Dimensions Orifice Diameter
0.06 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Additional Wetted Material
Loctite 609 / 680
Specifications Assembly Forward Cv
0.162
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
2.00
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
2000 psig
Specifications Nominal Orifice Size
60
Specifications Orifice Cv Return
0.081
Specifications Screened
None
Specifications Seal Material
Loctite 609, 680
