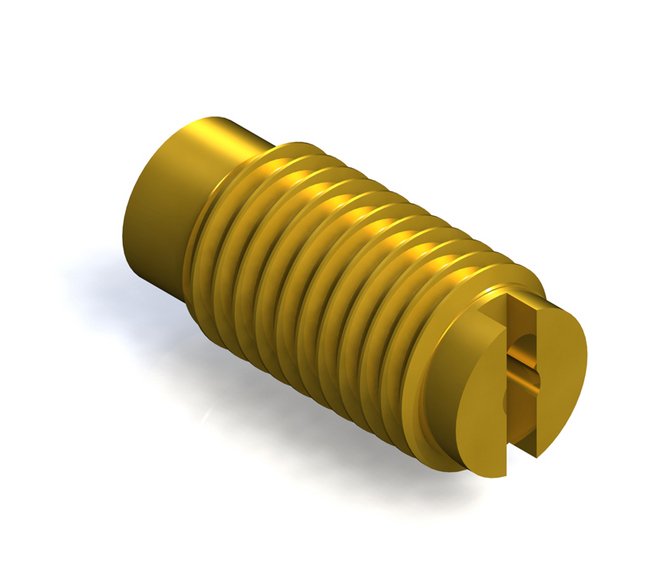

Ball Type Threaded Insert Check Valve with Metal Seat
Ball Type Threaded Insert Check Valve with Metal Seat
SKU:CHE-e4c081
High-quality Ball Type Threaded Insert Check Valve with Metal Seat for industrial applications. Brass construction, 304 SS Ball, 200 psig max pressure, and 300 °F max temperature.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Ball Type Threaded Insert Check Valve with Metal Seat
$29.99
Quantity: 1
Claim Your Seller Account
Ball Type Threaded Insert Check Valve with Metal Seat
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ball Type Threaded Insert Check Valve with Metal Seat is a high-quality valve designed for reliable performance in industrial applications. Made of durable Brass with a 304 SS Ball, this valve ensures optimal CV of 0.190 and can handle a Maximum Operating Pressure of 200 psig. With a temperature resistance up to 300 °F, this valve features a Male Thread with 7/16-20 UNF Threaded Insert O-ring seal for secure connections. The Metal seat provides a tight seal, minimizing Seat Leakage to 20 SSCM at 25 psi differential. Measuring 0.781 inches in Total Length, this valve is a robust and efficient choice for various systems.
Product Specifications
Dimensions Thread Size
7/16-20
Dimensions Total Length
0.781 in
Specifications Ball Material
304 SS
Specifications Connection A
7/16-20 UNF Threaded Insert O-ring seal
Specifications Cv
0.190
Specifications Material
Brass
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
