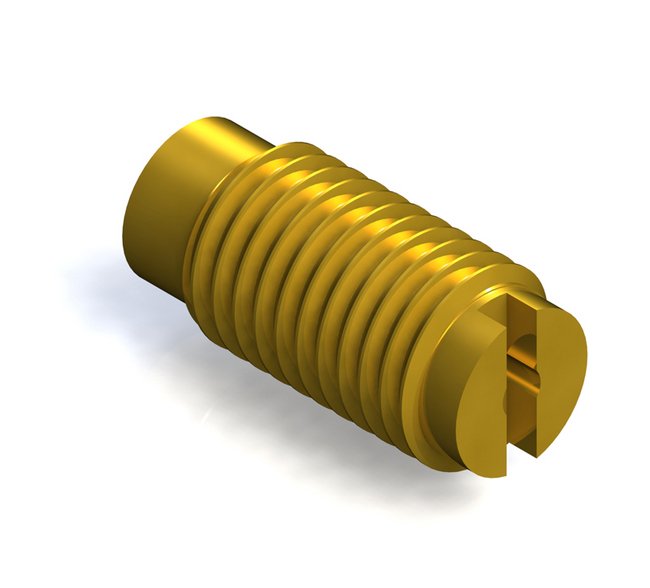

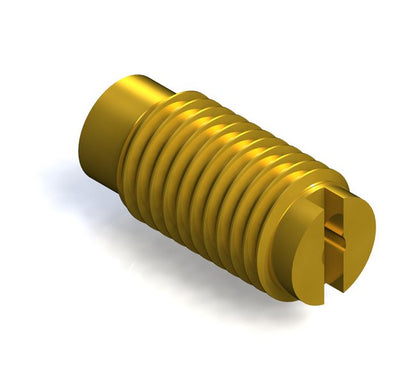

Ball Type Threaded Insert Check Valves with Metal Seat
Ball Type Threaded Insert Check Valves with Metal Seat
SKU:CHE-13b2f5
Premium Ball Type Threaded Insert Check Valves with Metal Seat for industrial applications, featuring brass body, 304 SS ball, and male 10-32 UNF thread. Reliable, precise, and leak-resistant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Ball Type Threaded Insert Check Valves with Metal Seat
$39.99
Quantity: 1
Claim Your Seller Account
Ball Type Threaded Insert Check Valves with Metal Seat
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ball Type Threaded Insert Check Valves with Metal Seat are expertly crafted with a durable brass body and a 304 stainless steel ball, ensuring reliable performance under pressure. With a CV of 0.02 and a maximum operating pressure of 125 psig, these valves offer superior control and long-lasting efficiency. Designed for precision, they feature a male 10-32 UNF threaded insert with an O-ring seal for secure connections and minimal seat leakage. Ideal for applications requiring a maximum temperature of 150 ºF, these valves deliver unmatched reliability and performance in industrial settings. Compliant with industry standards, these valves are the top choice for institutional and government buyers seeking quality and durability.
Product Specifications
Dimensions Thread Size
10-32
Dimensions Total Length
0.425 in
Specifications Ball Material
304 SS
Specifications Connection A
10-32 UNF Threaded Insert O-ring seal
Specifications Cv
0.02
Specifications Material
Brass
Specifications Maximum Operating Pressure
125 psig
Specifications Maximum Temperature
150 ºF
Specifications Screened
None
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
Specifications Thread
Male
