Ball Type UNF/UNC Fixed Flow Control Adapter
Ball Type UNF/UNC Fixed Flow Control Adapter
SKU:FLO-071af0
Precision control with stainless steel ball, brass construction, and 10-32 UNF connections for reliable flow in any direction.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Ball Type UNF/UNC Fixed Flow Control Adapter
$34.99
Quantity: 1
Claim Your Seller Account
Ball Type UNF/UNC Fixed Flow Control Adapter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

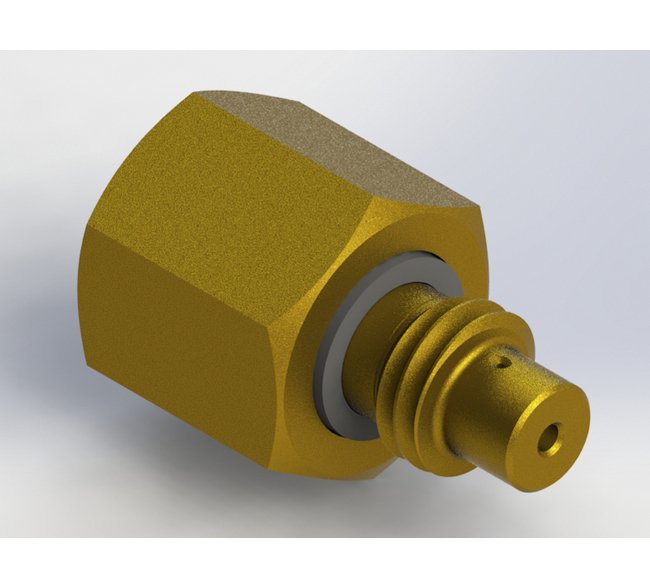

The Ball Type UNF/UNC Fixed Flow Control Adapter offers precision control with a stainless steel ball and orifice, allowing for metered flow in one direction. Constructed with high-quality brass and Viton seal materials, this adapter has a nominal orifice size of 0.017 inches and a cracking pressure of 125 psig. With a maximum temperature of 180°F, it meets stringent industry standards for reliable performance. Available as a male/female fitting with 10-32 UNF connections, this adapter ensures efficient flow regulation in both consumer and institutional settings.
Product Specifications
Dimensions Orifice Diameter
0.017 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0067
Flow Data Low Flow Coefficient
0.0067
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
17
Specifications Screened
None
Specifications Seal Material
Viton
