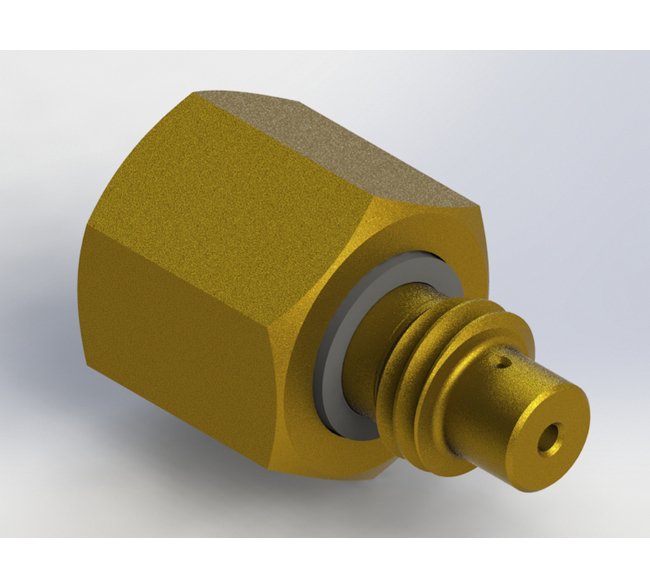

Ball Type UNF/UNC Fixed Flow Controls
Ball Type UNF/UNC Fixed Flow Controls
SKU:FLO-757f20
Achieve precise flow control with our Ball Type UNF/UNC Fixed Flow Controls. Ideal for metered flow applications with stainless steel ball and brass construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Ball Type UNF/UNC Fixed Flow Controls
$24.99
Quantity: 1
Claim Your Seller Account
Ball Type UNF/UNC Fixed Flow Controls
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise flow control with our Ball Type UNF/UNC Fixed Flow Controls. Constructed with high-quality brass material and Viton seals, these controls feature a stainless steel ball for accurate metered flow. With a nominal orifice size of 0.011 inches and impeccable sealing properties, they ensure reliable performance under pressure. Suitable for diverse applications, these controls meet stringent industry standards for durability and functionality.
Product Specifications
Dimensions Orifice Diameter
0.011 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data High Flow Orifice Cv2
0.0028
Flow Data Low Flow Coefficient
0.0028
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
11
Specifications Screened
None
Specifications Seal Material
Viton
